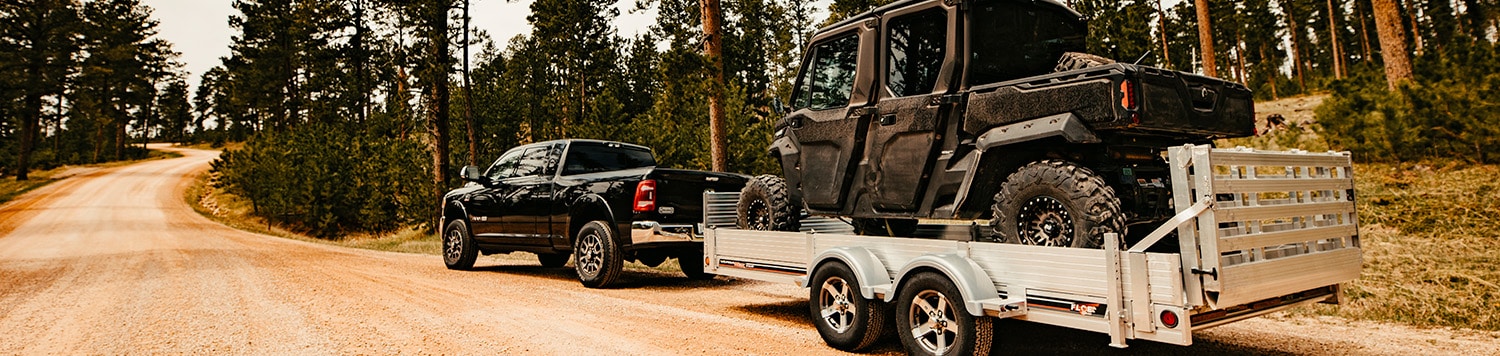

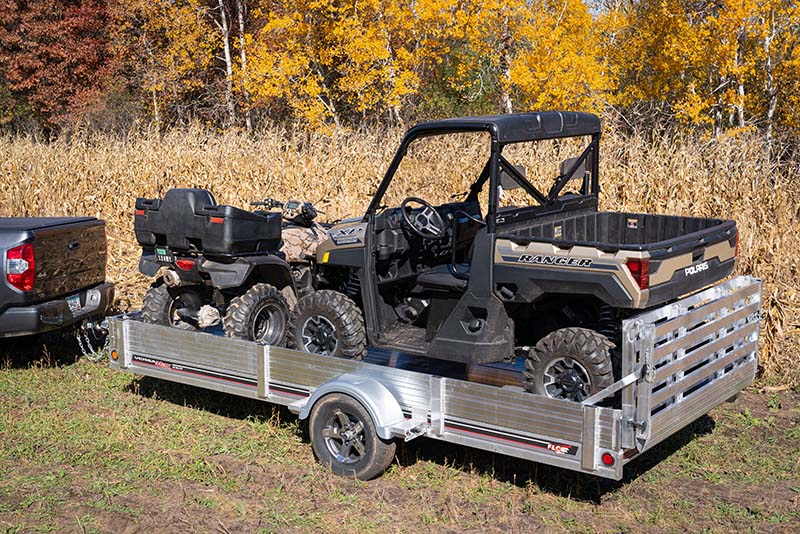

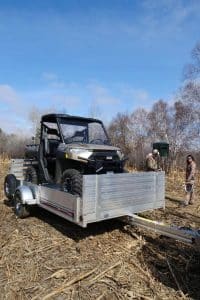

Versa-Max™ UT trailers are the result of 37 years of aluminum trailer design and manufacturing. They are the highest quality and most functional all-aluminum utility trailer available. Use them for hauling almost anything – and there’s nothing better when it comes to hauling ATV’s and side-by-sides. We invite you to compare Versa-Max™ UT to competitor’s trailers to see the difference.
Lee & Tiffany from “The Crush” have chosen FLOE as their trailer of choice. They use Versa-Max™ to haul their UTV’s and get things done around the farm.
Versa-Max™ UT Models
At FLOE, the safety of you and others is extremely important. Please make sure that you and any users of your FLOE equipment fully understand the important safeguards including assembly, installation, proper operation, and product capacities or limitations prior to using the product. This information is available in FLOE’s owner’s manuals. A hard copy is available from your dealer or by contacting FLOE directly. You can also download FLOE owner’s manuals here.

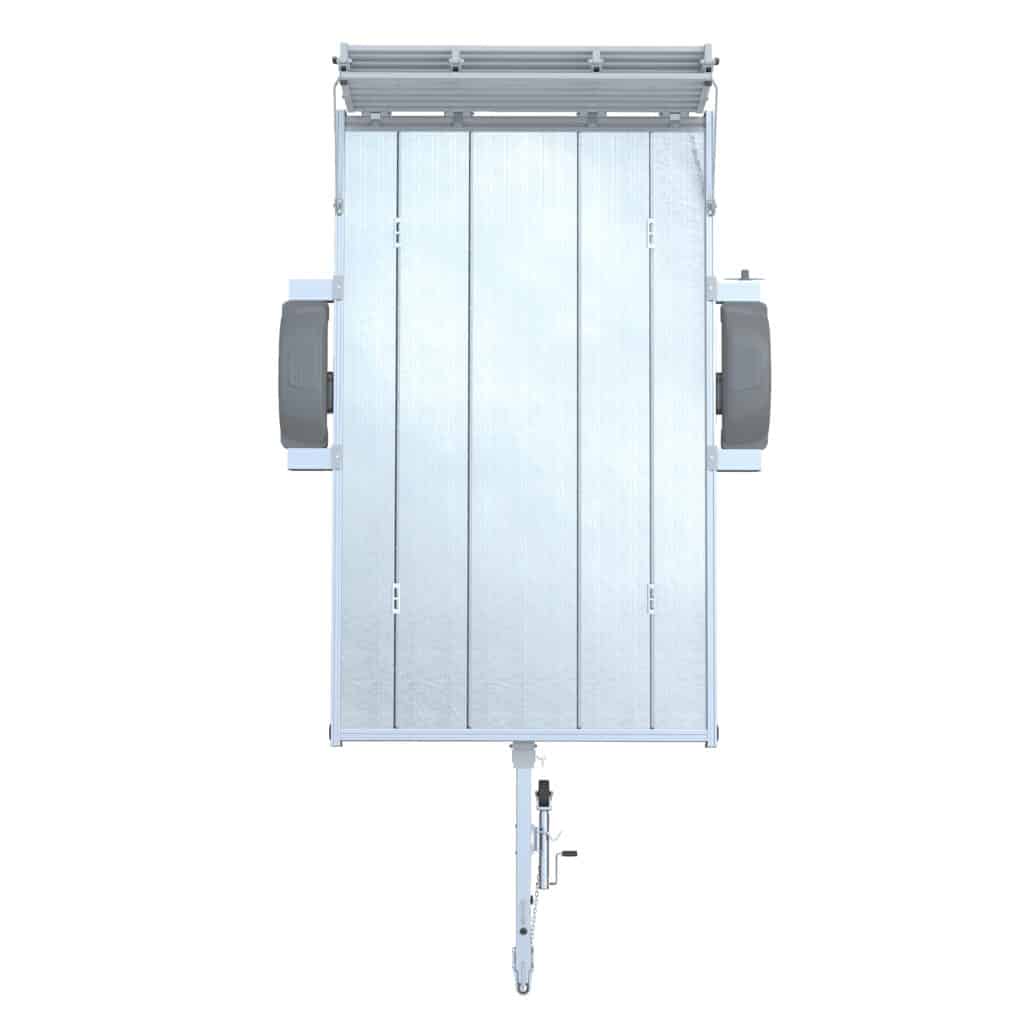

10.5-79
GVWR
2990 lbs / 1356 kgs*
Cargo Load
2220 lbs / 1007 kgs
Max. Tongue Weight
300 lbs / 136 kgs
11″ Side Kit
80 lbs / 36 kgs
GAWR
3500 lbs / 1588 kgs
Net Weight
660 lbs / 300 kgs
Standard Tires (Mag Rims)
205-75R14 w/Aluminum Mag
25″ Side Kit
183 lbs / 83 kgs
DIMENSIONS
Overall width w/o side kits – 79″
Inside width with side kits – 79″
Inside width between side ramps – 76.6″
Overall width including fenders – 100″
Bed Length – 10′ 5″
Bed Length between front side and rear ramp – 10′ 5″
Never exceed trailer GVWR and tongue weight capacity. Trailer cargo load capacity is reduced by the weight of additional options such as ramps and side kits.

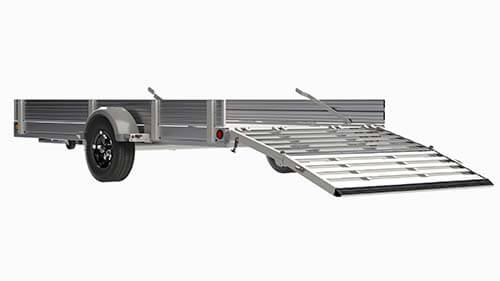

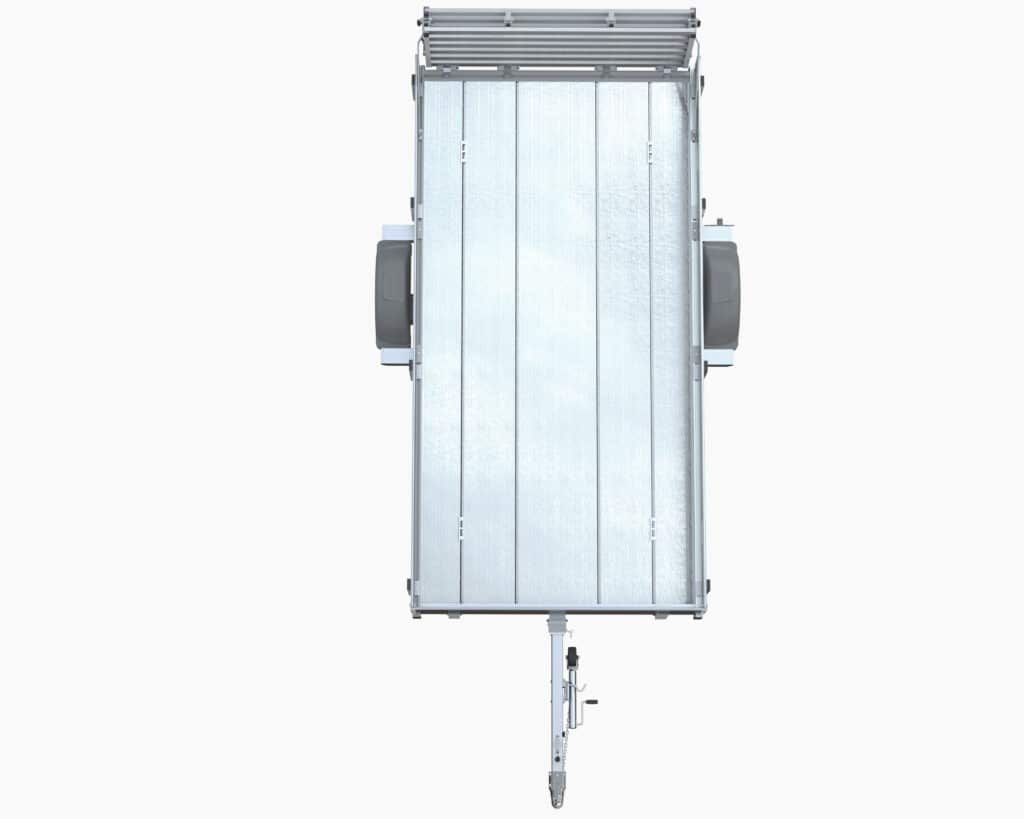

12.5-79
GVWR
2990 lbs / 1356 kgs
Cargo Load
2220 lbs / 1007 kgs
Max. Tongue Weight
300 lbs / 136 kgs
11″ Side Kit
93 lbs / 44 kgs
11″ Side Ramp
109 lbs / 49 kgs
GAWR
3500 lbs / 1588 kgs
Net Weight
710 lbs / 322 kgs
Standard Tires (Mag Rims)
205-75R14 w/Aluminum Mag
25″ Side Kit
211 lbs / 106 kgs
11″ Side Ramp 25″ Front
133 lbs / 60 kgs
DIMENSIONS
Overall width w/o side kits – 79″
Inside width with side kits – 79″
Inside width between side ramps – 76.6″
Overall width including fenders – 100″
Bed Length – 12′ 5″
Bed Length between front side and rear ramp – 12′ 5″
Never exceed trailer GVWR and tongue weight capacity. Trailer cargo load capacity is reduced by the weight of additional options such as ramps and side kits.

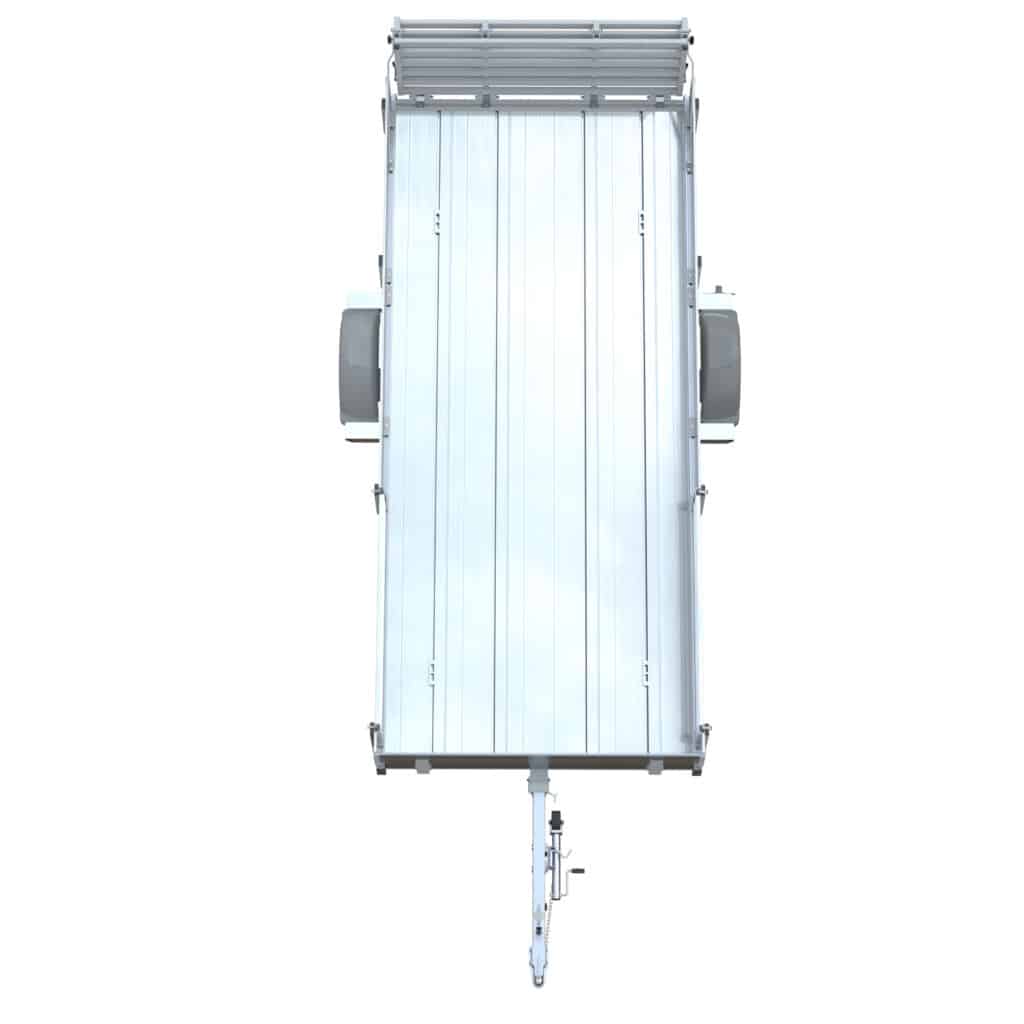

14.5-79 (No Brakes)
GVWR
2990 lbs / 1356 kgs
Cargo Load
2220 lbs / 1007 kgs
Max. Tongue Weight
300 lbs / 159 kgs
11″ Side Kit
102 lbs / 46 kgs
11″ Side Ramp
117 lbs / 53 kgs
GAWR
3500 lbs / 1588 kgs
Net Weight
825lbs / 374 kgs
Standard Tires (Mag Rims)
205-75R14 w/Aluminum Mag
25″ Side Kit
233 lbs / 106 kgs
11″ Side Ramp 25″ Front
142 lbs / 64 kgs
DIMENSIONS
Overall width w/o side kits – 79″
Inside width with side kits – 79″
Inside width between side ramps – 76.6″
Overall width including fenders – 100″
Bed Length – 14′ 5″
Bed Length between front side and rear ramp – 14′ 5″
14.5-79 (w/ Brakes)
GVWR
3500 lbs / 1588 kgs
Cargo Load
2675 lbs / 1213 kgs
Max. Tongue Weight
300 lbs / 159 kgs
11″ Side Kit
102 lbs / 46 kgs
11″ Side Ramp
117 lbs / 53 kgs
GAWR
3500 lbs / 1588 kgs
Net Weight
825lbs / 374 kgs
Standard Tires (Mag Rims)
205-75R14 w/Aluminum Mag
25″ Side Kit
233 lbs / 106 kgs
11″ Side Ramp 25″ Front
142 lbs / 64 kgs
DIMENSIONS
Overall width w/o side kits – 79″
Inside width with side kits – 79″
Inside width between side ramps – 76.6″
Overall width including fenders – 100″
Bed Length – 14′ 5″
Bed Length between front side and rear ramp – 14′ 5″
Never exceed trailer GVWR and tongue weight capacity. Trailer cargo load capacity is reduced by the weight of additional options such as ramps and side kits.

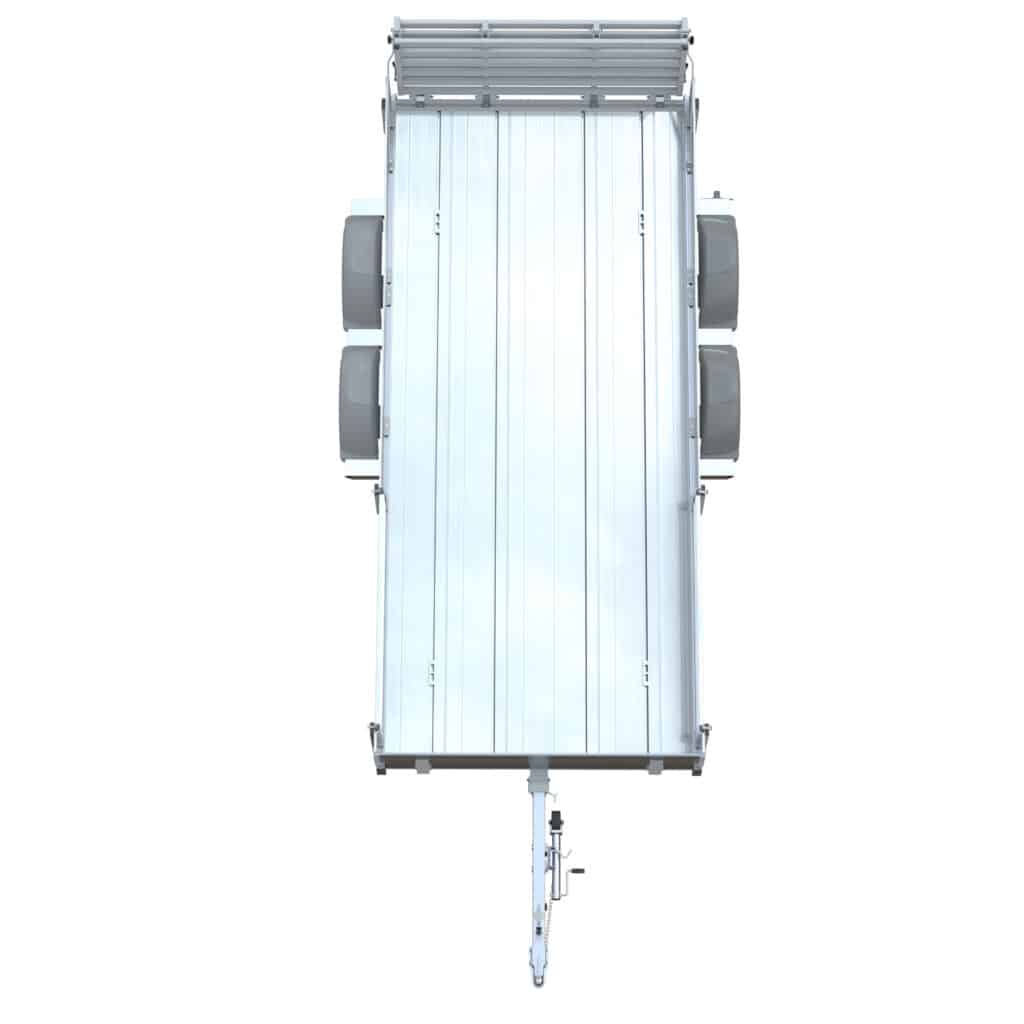

14.5-79 (Tandem Axle w/ brakes)
GVWR
5000 lbs / 2268 kgs
Cargo Load
3900 lbs / 1769 kgs
Max. Tongue Weight
500 lbs / 227 kgs
11″ Side Kit
102 lbs / 46 kgs
11″ Side Ramp
117 lbs / 53 kgs
GAWR
3500 lbs / 1588 kgs
Net Weight
1100 lbs / 500 kgs
Standard Tires (Mag Rims)
205-75R14 w/Aluminum Mag
25″ Side Kit
233 lbs / 106 kgs
11″ Side Ramp 25″ Front
142 lbs / 64 kgs
DIMENSIONS
Overall width w/o side kits – 79″
Inside width with side kits – 79″
Inside width between side ramps – 76.6″
Overall width including fenders – 100″
Bed Length – 14′ 5″
Bed Length between front side and rear ramp – 14′ 5″
Never exceed trailer GVWR and tongue weight capacity. Trailer cargo load capacity is reduced by the weight of additional options such as ramps and side kits.
14.5-79 (Tandem Axle no brakes)
GVWR
2990 lbs / 1356 kgs
Cargo Load
2220 lbs / 1007 kgs
Max. Tongue Weight
300 lbs / 136 kgs
11″ Side Kit
102 lbs / 46 kgs
11″ Side Ramp
117 lbs / 53 kgs
GAWR
3500 lbs / 1588 kgs
Net Weight
990 lbs / 449 kgs
Standard Tires (Mag Rims)
205-75R14 w/Aluminum Mag
25″ Side Kit
233 lbs / 106 kgs
11″ Side Ramp 25″ Front
142 lbs / 64 kgs
DIMENSIONS
Overall width w/o side kits – 79″
Inside width with side kits – 79″
Inside width between side ramps – 76.6″
Overall width including fenders – 100″
Bed Length – 14′ 5″
Bed Length between front side and rear ramp – 14′ 5″
Never exceed trailer GVWR and tongue weight capacity. Trailer cargo load capacity is reduced by the weight of additional options such as ramps and side kits.
Versa Max™ UT Features
Three Unique Loading & Unloading Options

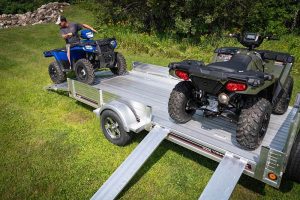

Level Ramp Mode
For ATV’s and other high clearance loads.

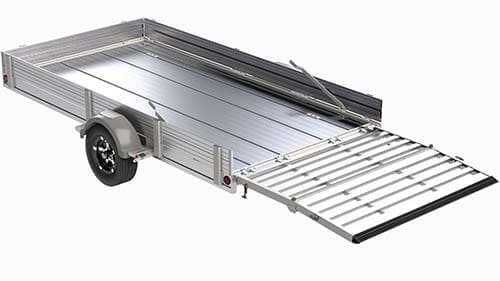

Limited Tilt Mode
For low clearance vehicles, such as lawnmowers and motorcycles.

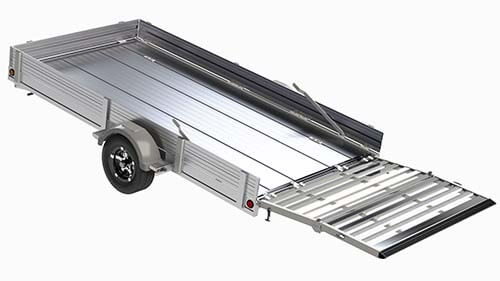

Full Tilt Dump Mode
For dirt, mulch, gravel and other loose material.

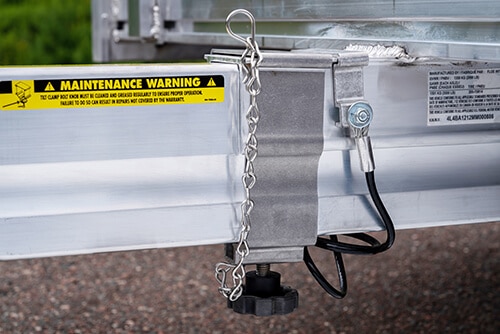

Fast-Action Tilt Clamp™
Keeps your trailer bed firmly in position and prevents rattling. Slide the clamp over the channel and turn the knob to tighten.
VERSA TRACK™
Maintenance free aluminum deck
Equipped with FLOE’s Versa-Track system allowing you to connect the trailer’s heavy-duty tie-downs anywhere along the track giving you endless options to help secure your load.

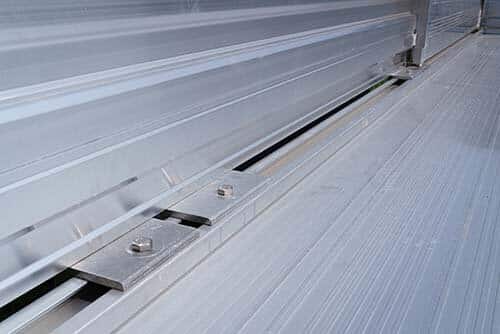

Quick attach™ track
Exclusive to FLOE, the Quick-Attach™ track system around the edges of the trailer allows you to easily add the solid sides or ramp sides for easy side loading.

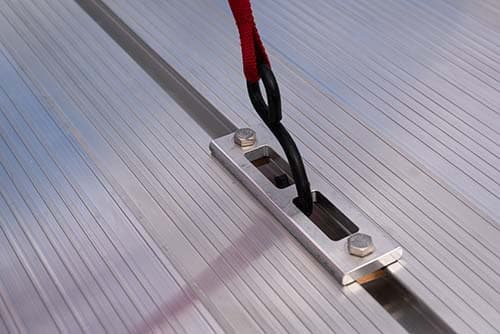

Versa track™
Infinite tie-down positioning and comes standard with four tie-down plates.

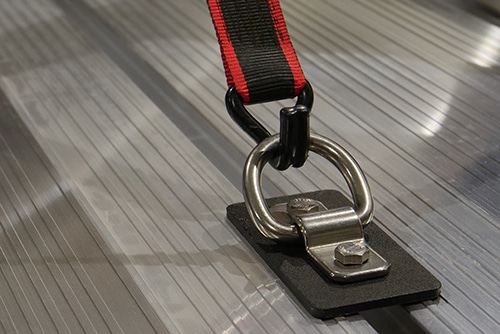

D-rings
Optional oversized 2 1-2” x 2 3/8″ folding D-Ring style tie downs are also available to add additional tie-down points anywhere along the Versa-Track™.
VERSATILTY

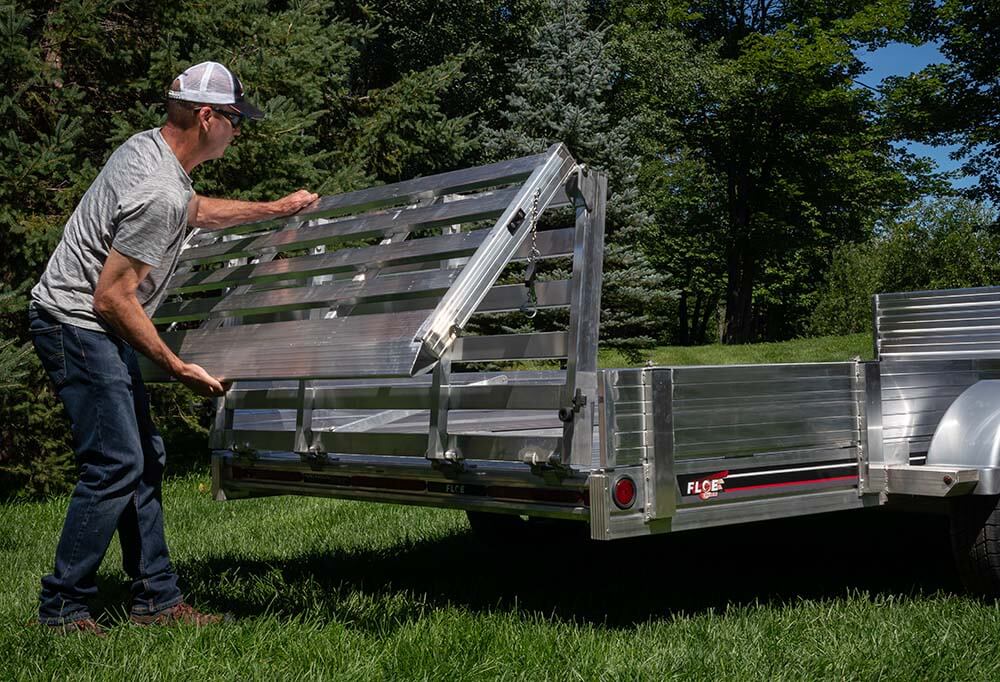

Side Ramps
71″ side/ramp combination makes it easy to load your equipment and be on the road fast. Just connect the side/ramp combo in the Quick-Attach™ tailgate ramp system features two loading angles. “Level Ramp Mode track and be on your way.

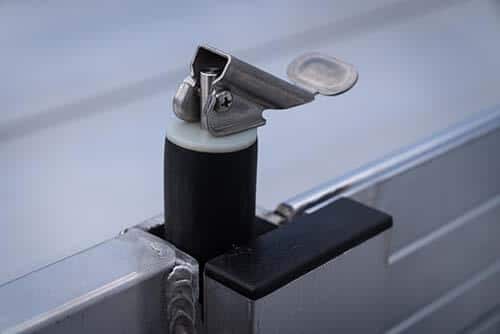

Pin Silencers
Quietest trailer in the industry with tailgate ramp pin silencers and ramp/side kit expansion silencers
Front Shield
Add extra protection for your cargo by upgrading to the 25’ front shield.

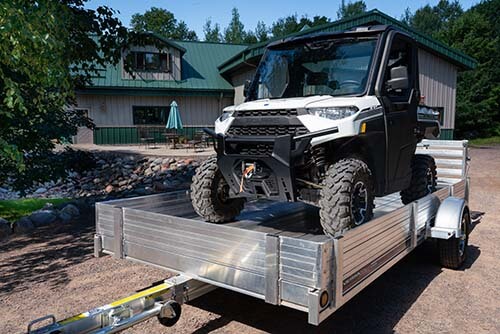

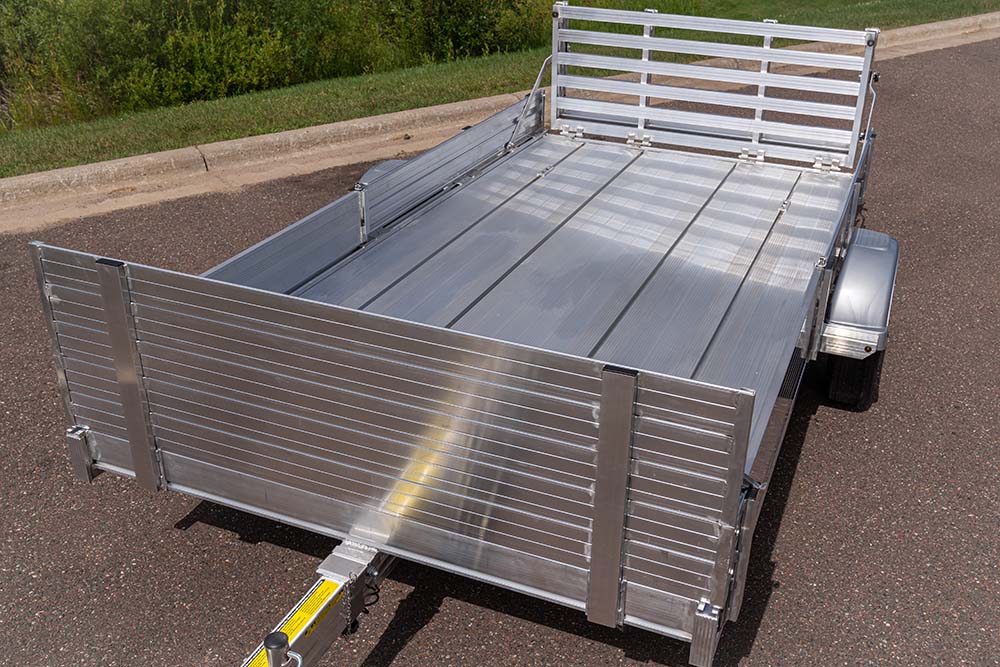

Side Kits
Optional 11″ and 25 ” solid side kits available. Also 11″ side-load kits are available for the 12.5′ and 14.5′ models with either an 11″ or a 25″ front.

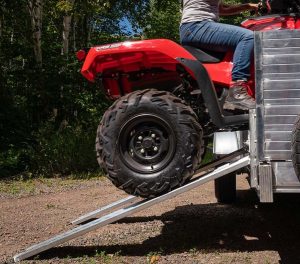

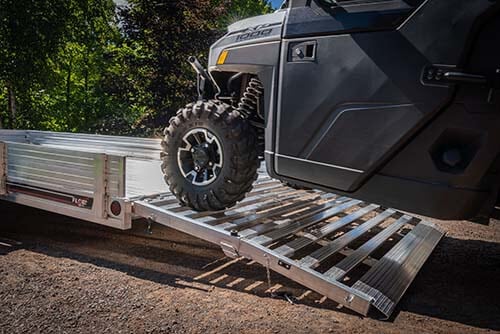

Heavy-Duty Tailgate Ramp
Makes loading fast and easy. Incorporates FLOE’s exclusive pin silencers making it the quietest trailer in the industry. The bi-fold design keeps a low profile for less wind drag and easy, efficient towing. If you’re towing the trailer without a load, you can fold the ramp to the inside of the trailer to minimize wind resistance even more.
ADDITIONAL FEATURES

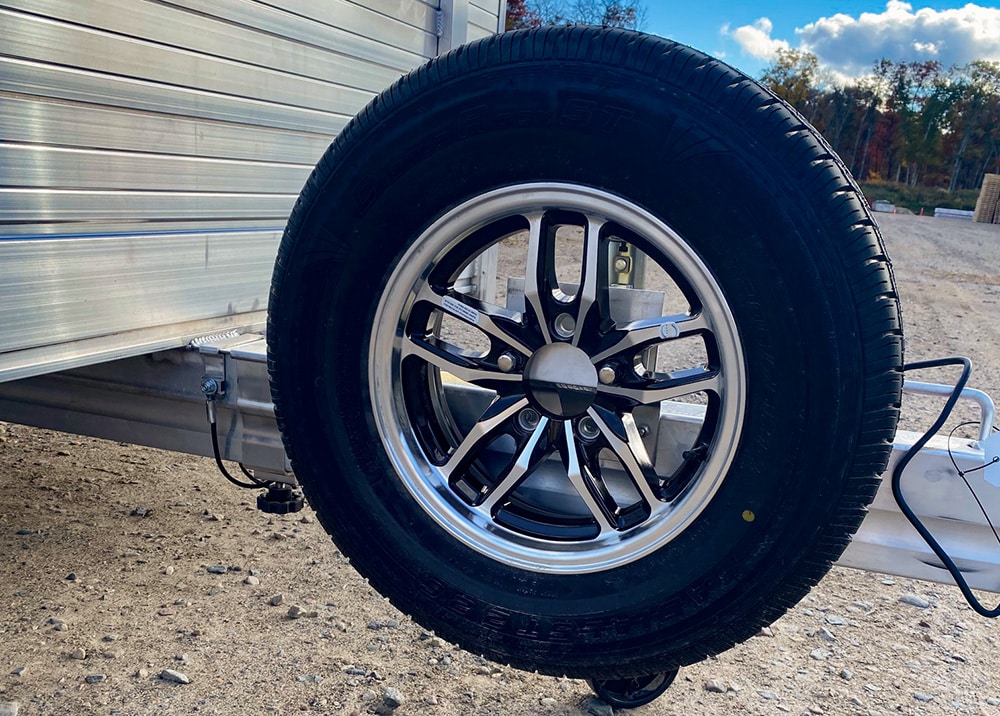

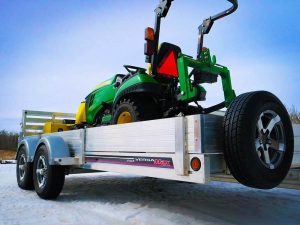

Spare Tire Carrier
Mounts securely to the tongue of the trailer for easy access.

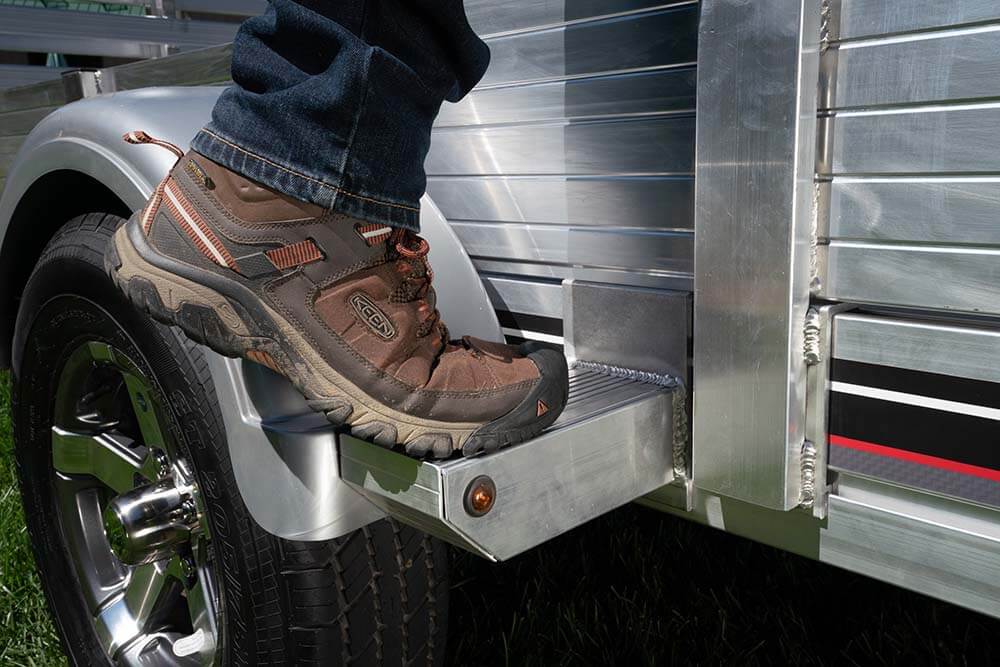

Side Steps
Comes standard with two steps on either side for easy in/easy out.

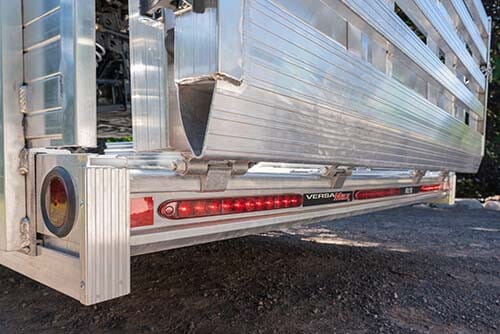

Trouble-free LED Lights
Concealed and protected within the frame.

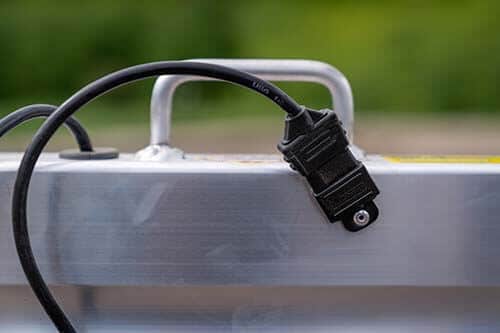

Wiring Plug Receptacle
Keeps your connector dry and off the ground when not in use.

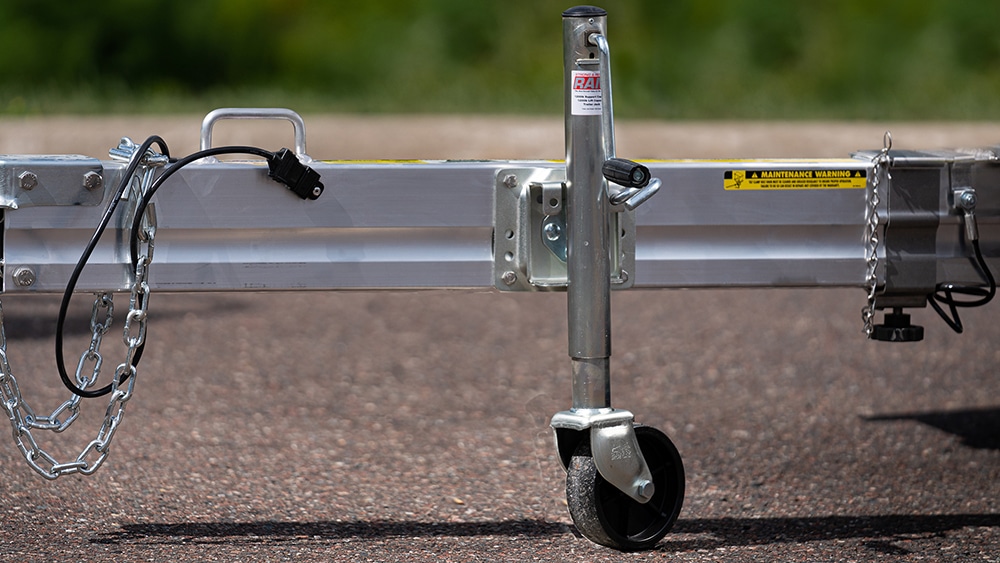

Swivel Tongue Jack
For easy trailer movement by hand.

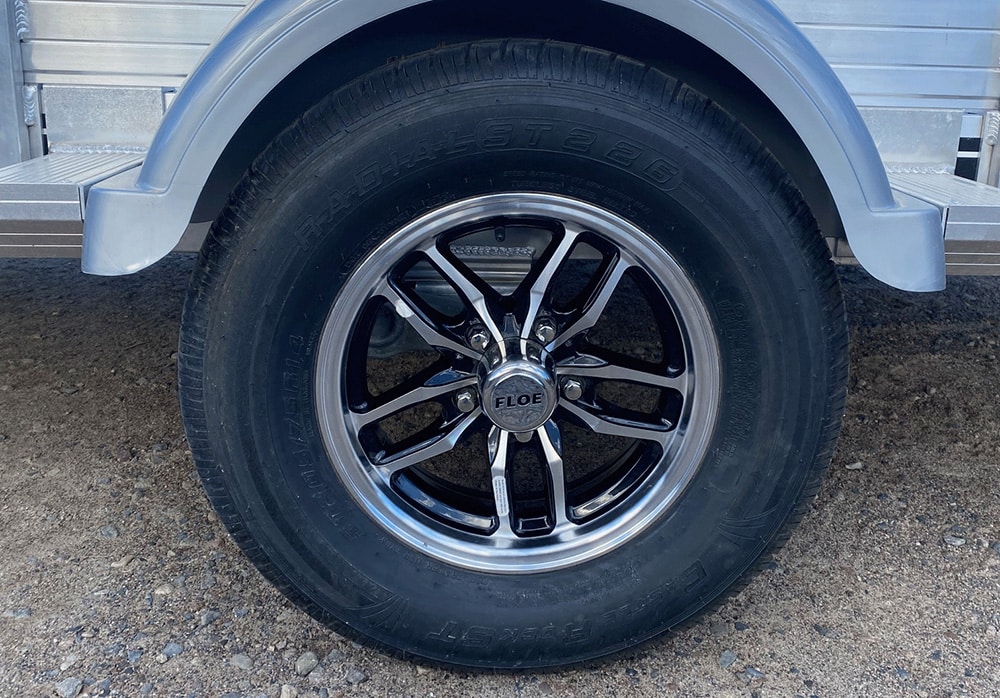

14” Radial Tires
Premium aluminum alloy wheels with radial tires standard on all UT models.

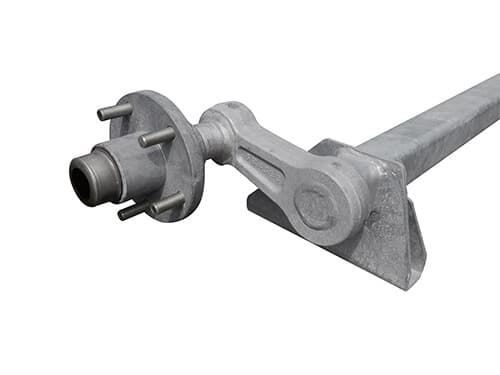

Galvanized Axel & Rubber Torsion System
Provides a smoother ride as compared to a spring axle. Galvanized axle keeps rust & corrosion at bay.
Versa-Max™ UT Product Videos

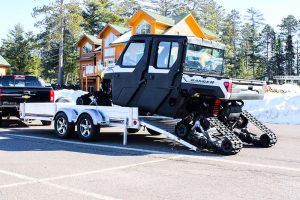

Versa-Max™ UT Gallery
