Pro-Tektor™ Enclosures

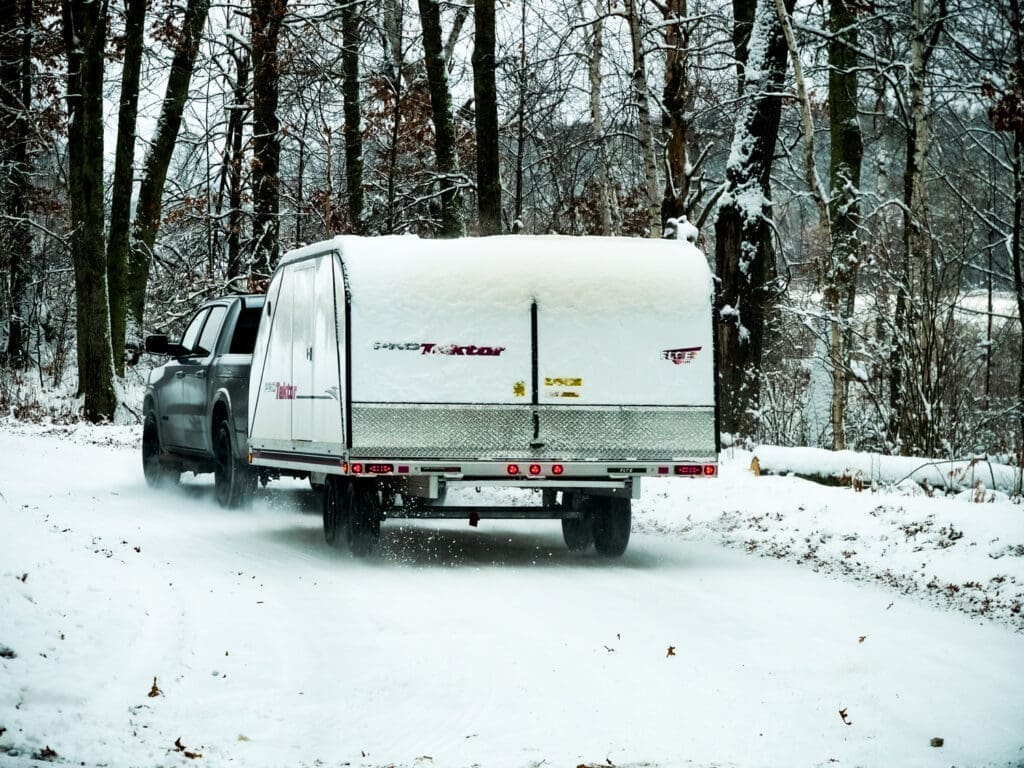

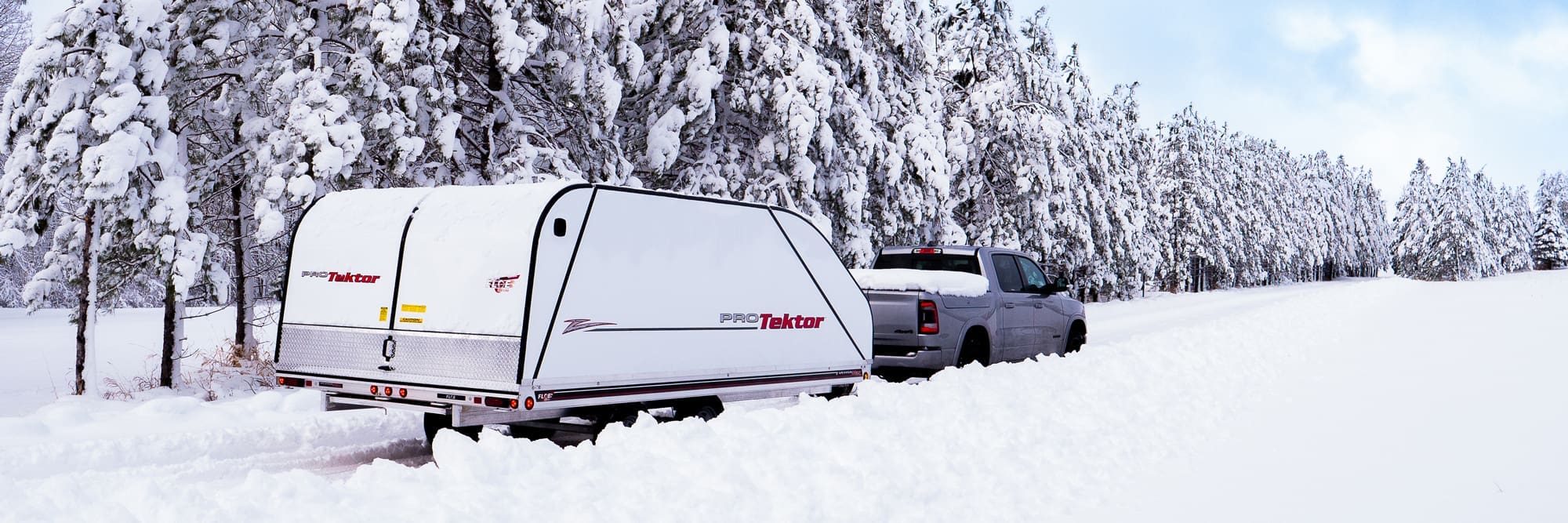

The enclosed trailer that tows so easily you’ll think it’s an open bed trailer! FLOE’s gull-wing style Pro-Tektor™ enclosures combine exceptional aerodynamic design and phenomenal protection into one great looking, easy-to-use trailer.

Rt Road P1144465 Copy 1024x768

The uni-body design includes virtually indestructible side walls which remain durable even in sub-zero temperatures. FLOE’s exclusive floor trussing system delivers maximum strength, excellent water drainage, and superior cleaning ability.

Versa-Max™ RT/Pro-Tektor™ Models

At FLOE, the safety of you and others is extremely important. Please make sure that you and any users of your FLOE equipment fully understand the important safeguards including assembly, installation, proper operation, and product capacities or limitations prior to using the product. This information is available in FLOE’s owner’s manuals. A hard copy is available from your dealer or by contacting FLOE directly. You can also download FLOE owner’s manuals here.

12' Versa-Max ™​ RT

16' Versa-Max ™ rt-No Brakes

16' Versa-Max ™ rt - w/ Brakes

22' Versa-Max ™ RT

12' Versa-Max ™​ RT

SINGLE AXLE – NO BRAKES

GVWR: 2999 lbs / 1363 kgs

Cargo Load: 2311 lbs / 1050 kgs

Net Weight: 688 lbs / 312 kgs

Axle(s): (1) 3000 lbs / 1364 kgs

Optional Enclosure Weight: 370 lbs

Trailer Length: 215″

Max. Tongue Weight: 150 lbs / 68 kgs

Standard Tires: 13″ radial on steel wheel

16' Versa-Max ™ RT

TANDEM AXLE – NO BRAKES

GVWR: 2999 lbs / 1363 kgs

Cargo Load: 1945 lbs / 884 kgs

Net Weight: 1054 lbs / 479 kgs

Axle(s): (2) 3000 lbs / 1364 kgs

Optional Enclosure Weight: 470 lbs

Trailer Length: 263″

Max. Tongue Weight: 220 lbs / 100 kgs

Standard Tires: 13″ radial on steel wheel

16' Versa-Max ™ RT

TANDEM AXLE – BRAKES ON 2

GVWR: 4700 lbs / 2136 kgs

Cargo Load: 3571 lbs / 1623 kgs

Net Weight: 1129 lbs / 513 kgs

Axle(s): (2) 3000 lbs / 1364 kgs

Optional Enclosure Weight: 470 lbs

Trailer Length: 263″

Max. Tongue Weight: 300 lbs / 136 kgs

Standard Tires: 13″ radial on steel wheel

22' Versa-Max ™ RT

TANDEM AXLE – BRAKES ON 2

GVWR: 5000 lbs / 2272 kgs

Cargo Load: 3593 lbs / 1633 kgs

Net Weight: 1407 lbs / 639 kgs

Axle(s): (2) 3000 lbs / 1364 kgs

Optional Enclosure Weight: 570 lbs

Trailer Length: 335″

Max. Tongue Weight: 300 lbs / 136 kgs

Standard Tires: 13″ radial on steel wheel

Tongue Jack is standard on all Versa-Max™ Ramp Trailer Models **Minimum tongue weight is required to reach rated cargo loads listed. Minimum tongue weight is the empty trailer. Loaded tongue weight should never be less than the empty trailer tongue weight. ***The “cargo load” of your trailer will be reduced by the weight of the enclosure. TRAILER LOAD CAPACITY: Each trailer model has a maximum load capacity. It is important that this capacity is not exceeded. Never exceed trailers max GVWR and tongue weight capacity. Trailers cargo load capacity is reduced by the weight of additional options such as ramps, gates, side kits or enclosures.

pro-tektor™ enclosure Features

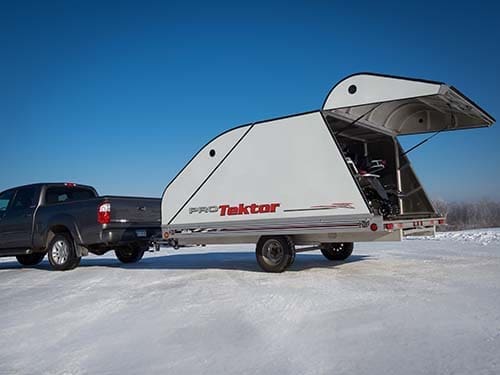

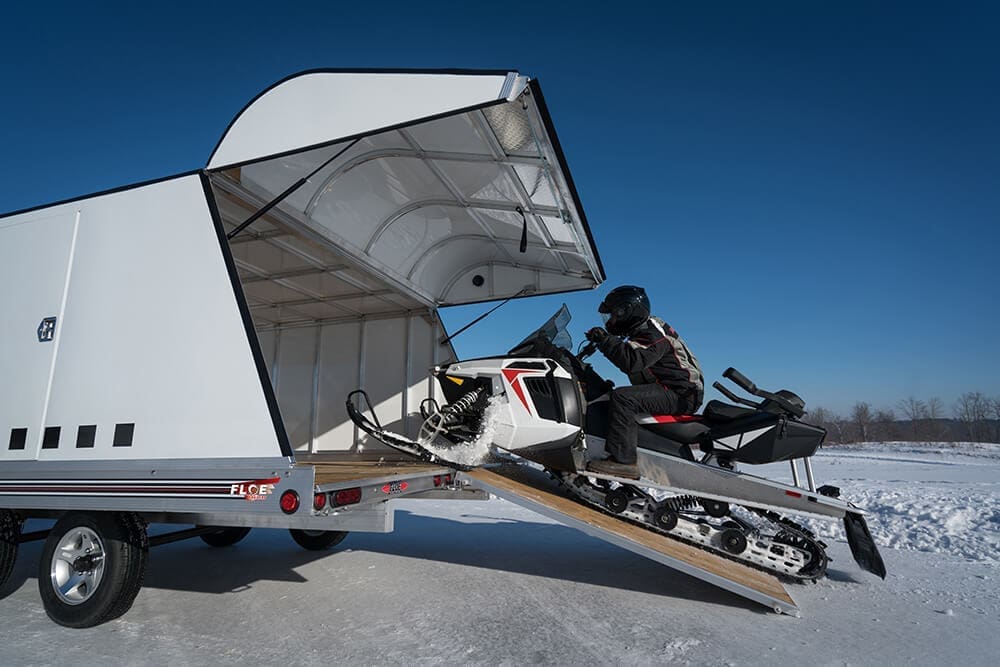

Gull-Wing Doors

Style…Function…Protection. The Pro-Tektor™ has it all! The aerodynamic front and rear gull-wing doors are standard on all Pro-Tektor™ trailers, providing a high overhead clearance. Dual gas shock assist allows for easy access and a full-length hinge gives lasting quality and protection.

Olympus Digital Camera
Olympus Digital Camera

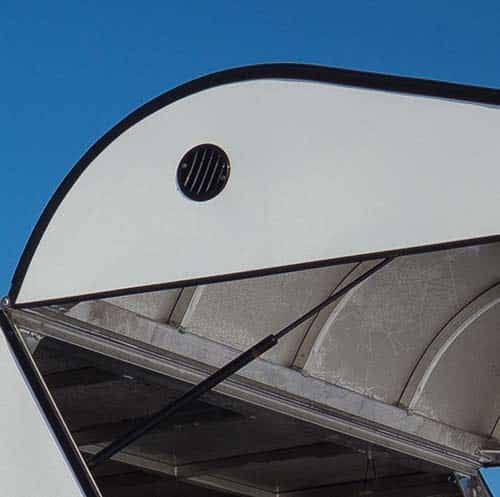

Enclosure Vent

This vent prevents overheating and helps to maintain dry atmosphere inside the enclosure. It balances the interior and exterior pressure and comes standard on all enclosed trailers.
Fa254694 700f 4ba6 B576 5375f2948ea4

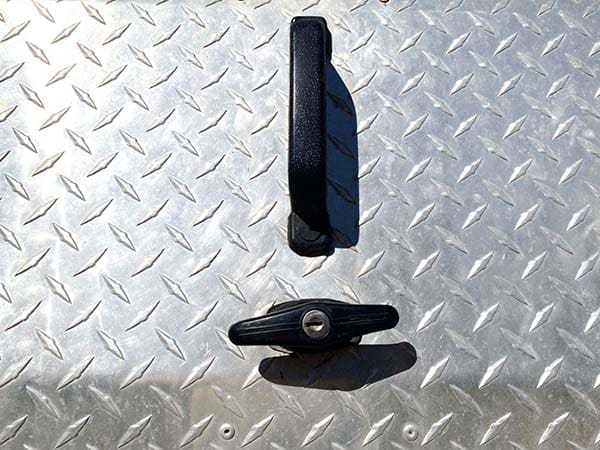

Lockable Doors

Keep your gear and cargo safe with keyed locks to all access doors.

Pro Tecktor Rock Guard

Rock Guard

The rock guard protects the trailer from damage in critical areas and comes standard on all enclosed trailers. This 14″ tall diamond plate panel on the front and rear doors is great looking, adds value and increases the lifespan of the enclosure.

Rt Sidedoor

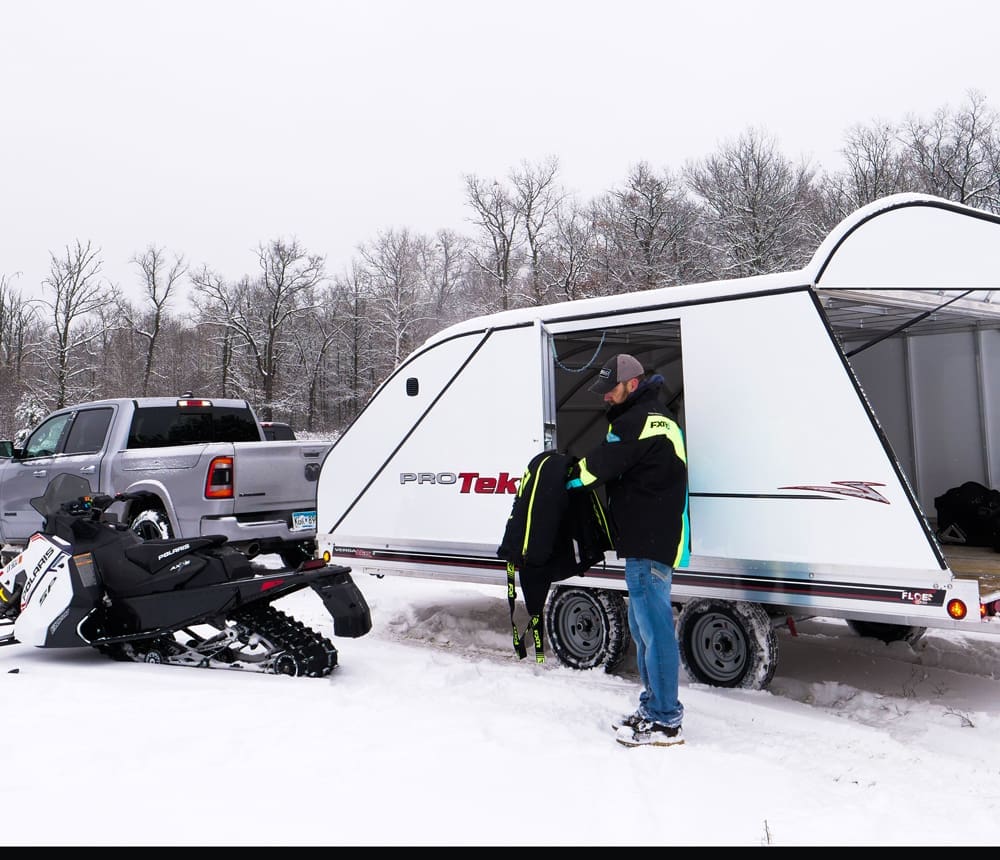

Side Access Door

When you need to toss in that one last thing, use the lockable side access door! Great for loading/unloading or securing your gear. Single doors are standard on all 16’ and 22’ enclosures and four doors are provided on 28’ enclosures.

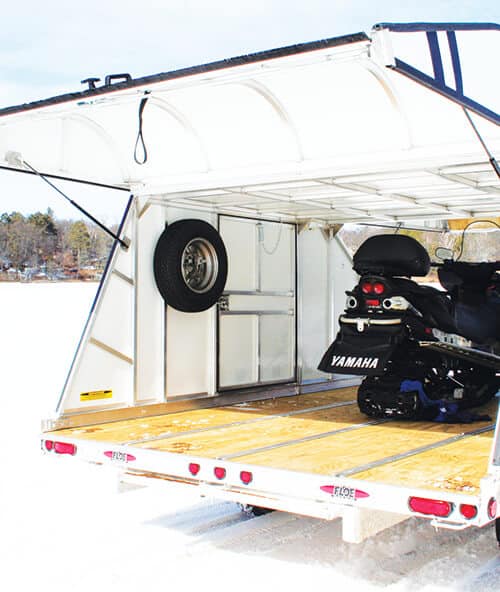

Enclosure Spare

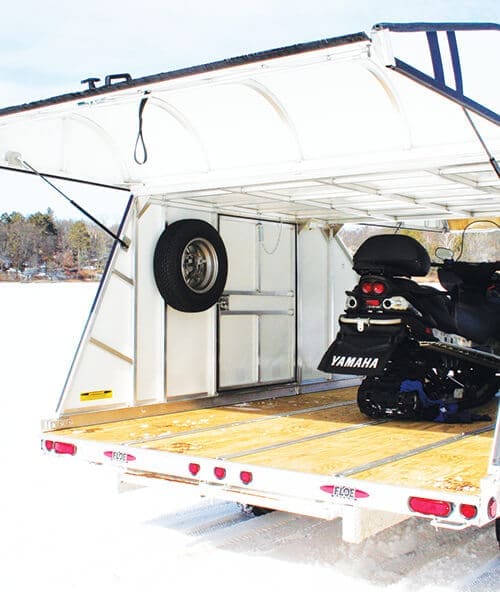

Optional Enclosure Spare Tire Carrier

Stored up and out of the way, you’ll be prepared for roadside hazards with the easily accessible spare tire and carrier.
