The uni-body design includes virtually indestructible side walls which remain durable even in sub-zero temperatures. FLOE’s exclusive floor trussing system delivers maximum strength, excellent water drainage, and superior cleaning ability.
The Utility Trailer that Changed the Industry
You demanded the best! We gave it to you. The CargoMax XRT’s rugged technology combines strength, functionality, and style. There’s simply no competition.

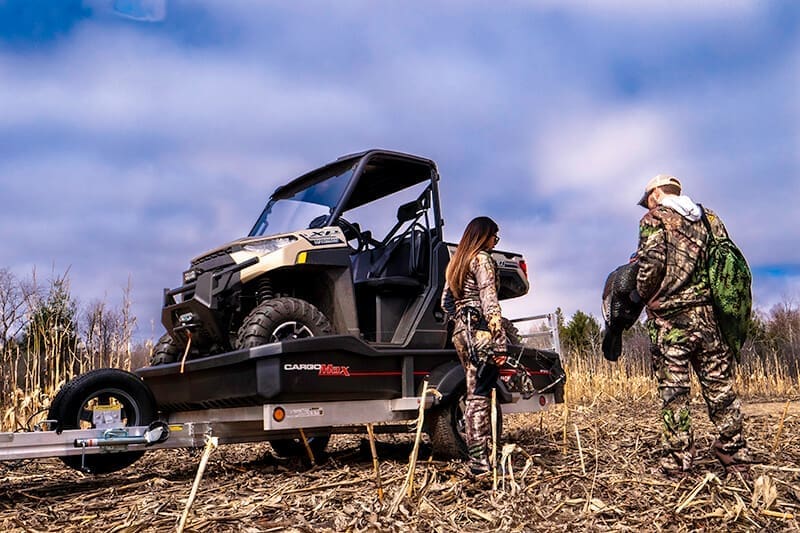

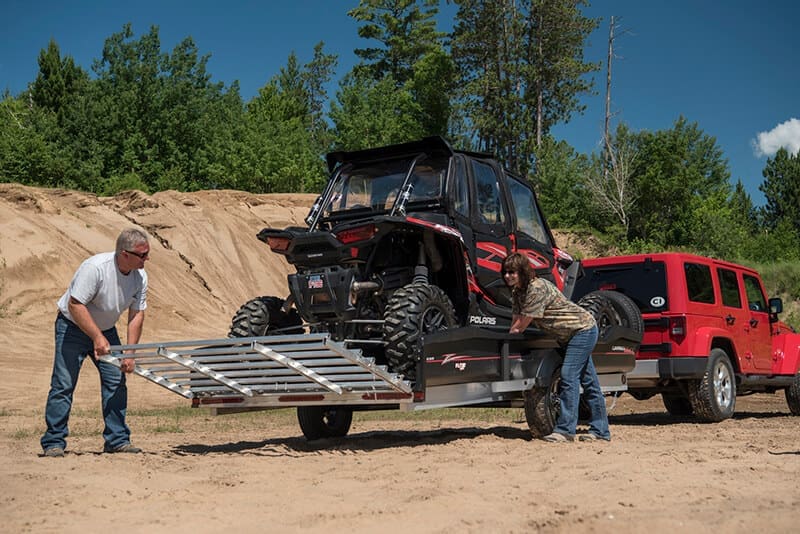

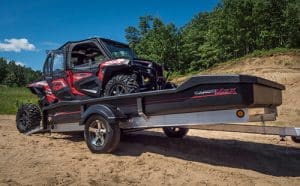

Lee & Tiffany from “The Crush” have chosen FLOE as their trailer of choice. They use CargoMax™ to haul their UTV’s and get things done around the farm.
CargoMax™ Models
FLOE offers the CargoMax Trailer in a variety of sizes to accommodate virtually any load. Click on each model number below for more details.

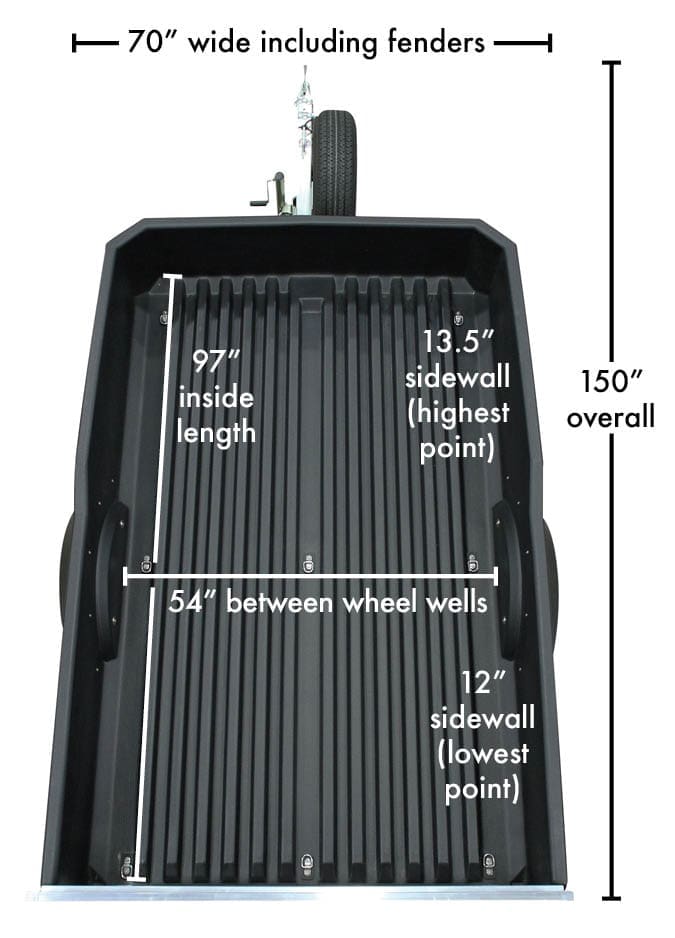

XRT 8-57
Trailer Weight
290 lbs / 132 kgs
Load Capacity*
1800 lbs / 815 kgs
Max Tongue Weight
125 lbs / 56 kgs
GVWR
2090 lbs /948 kgs
Tires
5.30×12”-C (Radial upgrade available)
Tire Speed Rating
5.30, 12”-C Bias – 65 MPH
Radial
75MPH
*Cargo load capacity is reduced by the weight of additional options such as ramps, gates, or cargo covers.

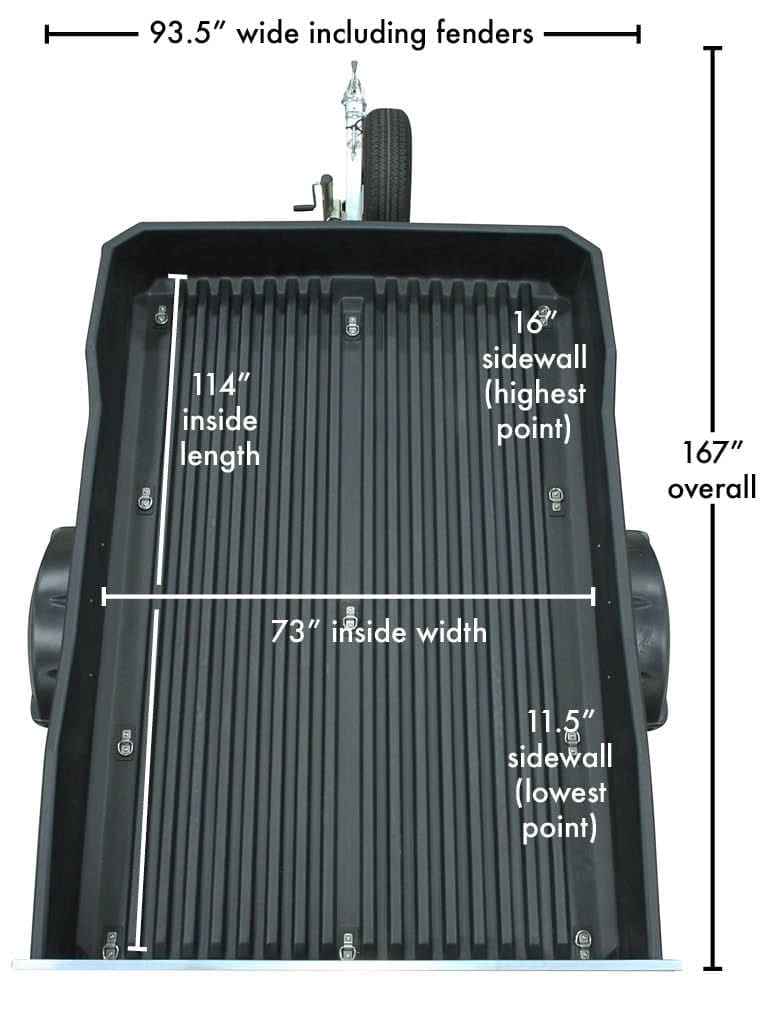

XRT 9.5-73
Trailer Weight (lbs/kgs)
2014-2020 models: 480 lbs /218 kgs
2021 and newer: 520 lbs /236 kgs
Load Capacity* (lbs/kgs)
2014-2020 models: 2200 lbs /998 kgs
2021 and newer: 2380 lbs /1080 kgs
Max Tongue Weight (lbs/kgs)
2014-2020 models: 220 lbs /100 kgs
2021 and newer: 300 lbs /136 kgs
GVWR (lbs/kgs)
2014-2020 models: 2800 lbs /1270 kgs
2021 and newer: 2990 lbs /1356 kgs
Tires
205-75R14 w/Aluminum Mag
Tire Speed Rating
205-75R14 Steel – 75 MPH
205-75R14 Aluminum – 75MPH
*Cargo load capacity is reduced by the weight of additional options such as ramps, gates, or cargo covers.

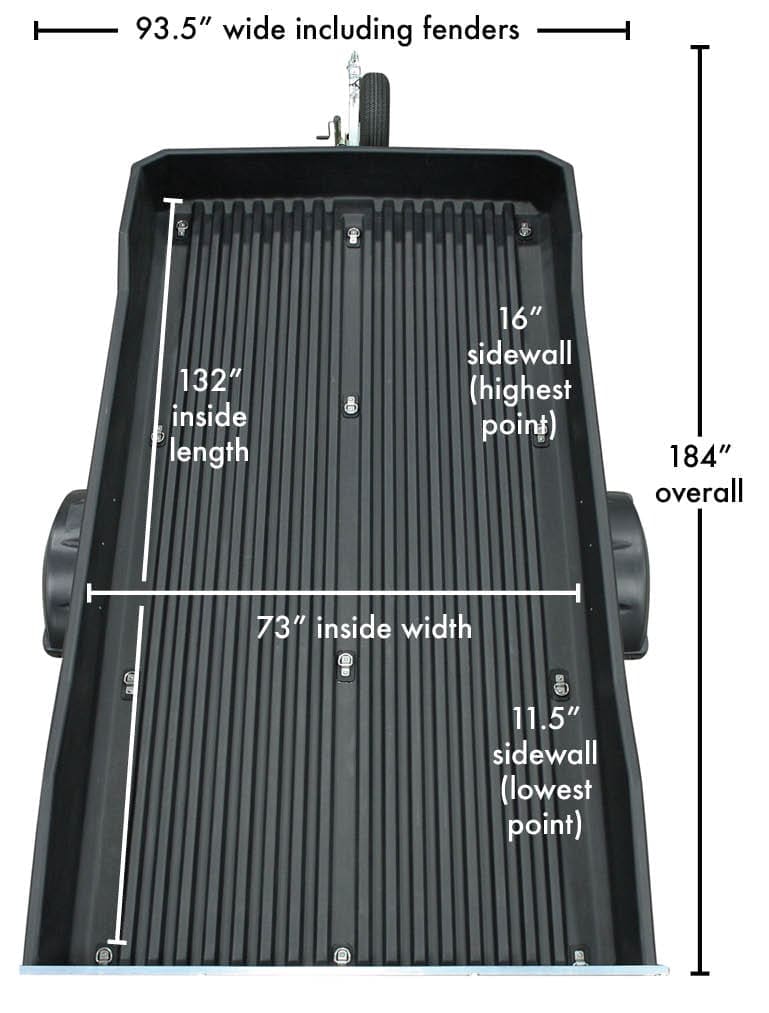

XRT 11-73
Trailer Weight
Current models: 580 lbs / 263 kg
Load Capacity*
Current models: 2380 lbs / 1080 kg
Max Tongue Weight
Current models: 300 lbs / 136 kg
GVWR
Current models: 2990 lbs / 1356 kg
Tires
205-75R14 w/Aluminum Mag
Tire Speed Rating
205-75R14: Steel 75 MPH
205-75R14: Aluminum 75MPH
*Cargo load capacity is reduced by the weight of additional options such as ramps, gates, or cargo covers.

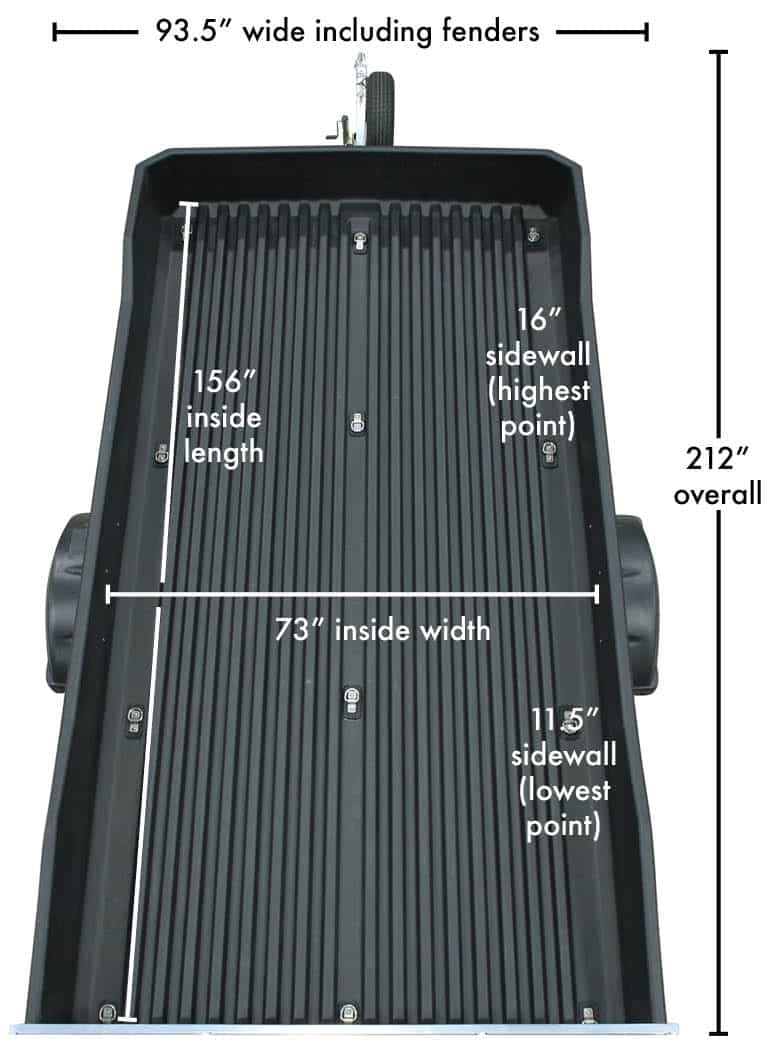

XRT 13-73
Trailer Weight
2014-2020 models: 570 lbs / 258 kgs
2021 and newer: 610 lbs / 277 kg
Load Capacity*
2014-2020 models: 2200 lbs / 998 kg
2021 and newer: 2380 lbs / 1080 kg
Max Tongue Weight
2014-2020 models: 220 lbs / 100 kgs
2021 and newer: 300 lbs / 136 kg
GVWR
2014-2020 models: 2800 lbs / 1270 kgs
2021 and newer: 2990 lbs / 1356 kg
Tires
205-75R14 w/Aluminum Mag
Tire Speed Rating
205-75R14: Steel 75 MPH
205-75R14: Aluminum 75MPH
*Cargo load capacity is reduced by the weight of additional options such as ramps, gates, or cargo covers.

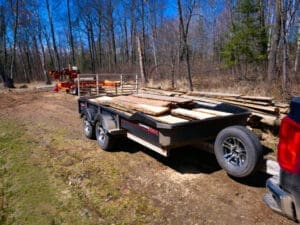

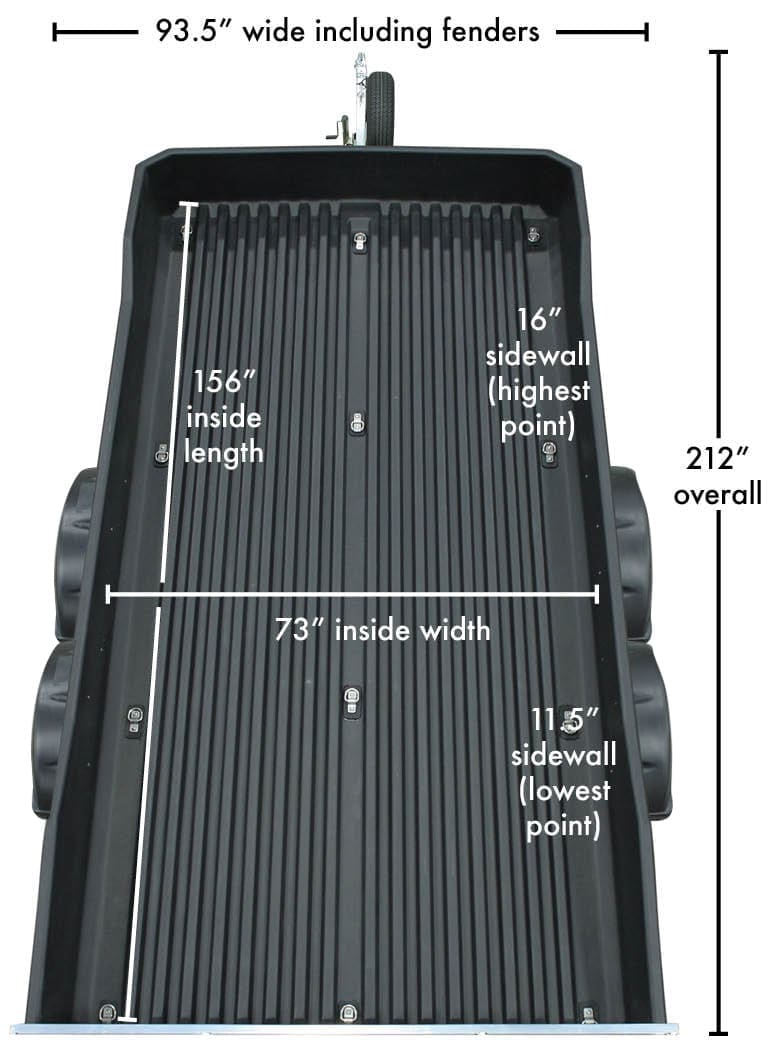

XRT 13-73 Tandem (no brakes)
Trailer Weight
780 lbs / 354 kgs
Load Capacity*
2200 lbs / 998 kgs
Max Tongue Weight
440 lbs / 200 kgs
GVWR
2990 lbs / 1356 kgs
Tires
205-75R14 w/Aluminum Mag
Tire Speed Rating
205-75R14: Steel Radial 75 MPH
205-75R14: Aluminum Radial 75 MPH
*Cargo load capacity is reduced by the weight of additional options such as ramps, gates, or cargo covers. CargoMax Tandem trailers are non-tilting.
XRT 13-73 Tandem (brakes)
Trailer Weight
930 lbs / 422 kgs
Load Capacity*
3470 lbs / 1574 kgs
Max Tongue Weight
440 lbs / 200 kgs
GVWR
4400 lbs / 2000 kgs
Tires
205-75R14 w/Aluminum Mag
Tire Speed Rating
205-75R14: Steel Radial 75 MPH
205-75R14: Aluminum Radial 75 MPH
*Cargo load capacity is reduced by the weight of additional options such as ramps, gates, or cargo covers. CargoMax Tandem trailers are non-tilting.
CargoMax™ Features
Three Unique Loading & Unloading Options

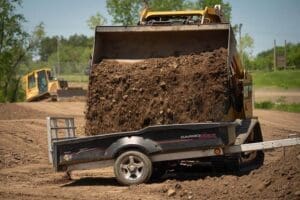

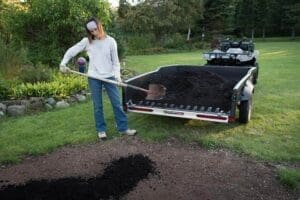

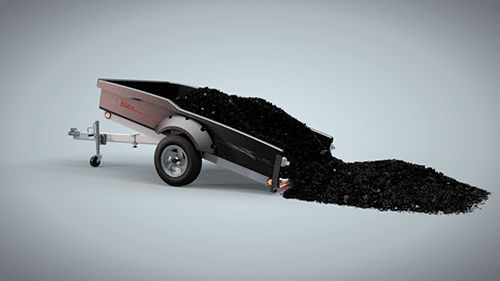

Full Tilt Dump Mode
For dirt, mulch, gravel and other loose material.

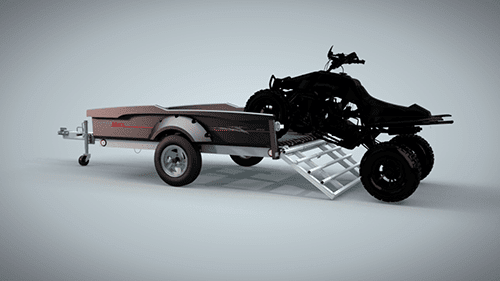

Level Ramp Mode
For ATV’s and other high clearance loads.

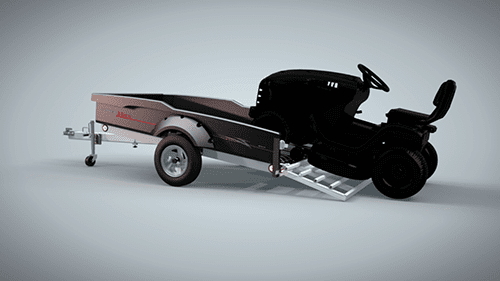

Limited Tilt Mode
For low clearance vehicles, such as lawnmowers and motorcycles.

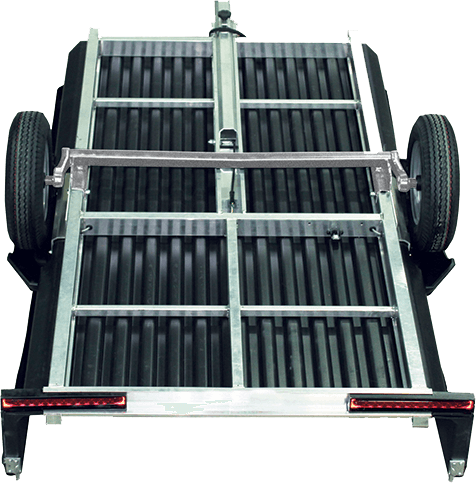

Rigid Aluminum Frame
High strength-to-weight ratio extruded aluminum frame never rusts or needs paint. Lightweight enough to be towed by a compact car and allowing it to be easily moved by hand, yet rigid enough to handle heavy loads. All joints fully welded ensuring extreme rigidity and durability.

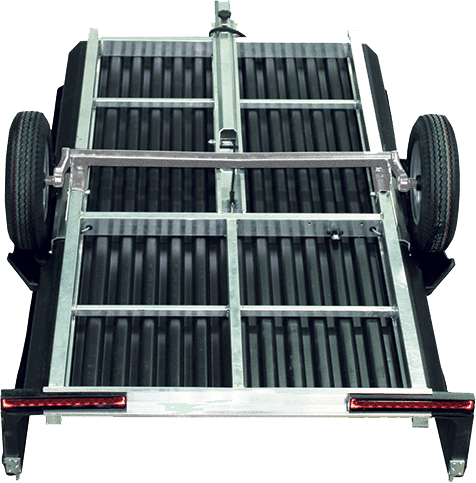

Running Gear

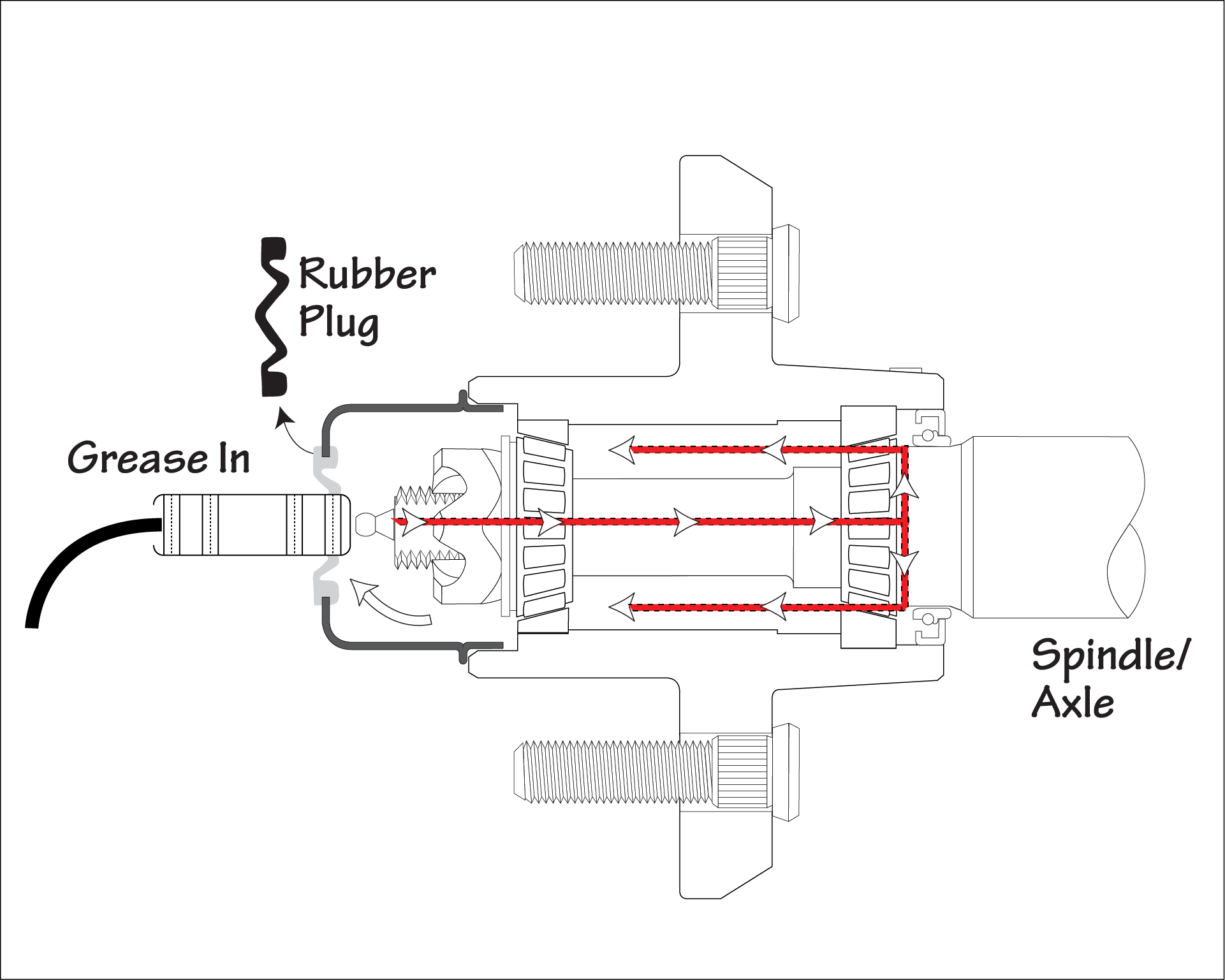

Heavy-duty galvanized rust-resistant axles & wheels. Independent rubber torsion suspension tames the worst roads and handles heavy loads. Superior hub lubrication system lets you easily grease hubs without disassembly. Large speed rated wheels will stay cool over long distances.

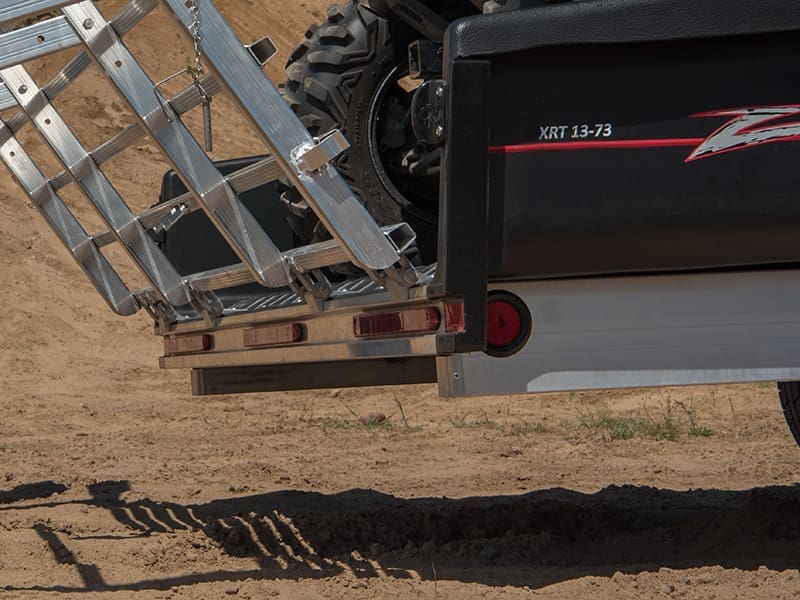

Trouble-Free LED Lighting System
- Extremely bright and long-lasting commercial-grade LED lights. Lights are recessed into an aluminum frame, which prevents accidental breakage.
- Each light is independently grounded to the tow vehicle eliminating intermittent grounding issues.
- Molded wiring harness runs through the aluminum frame creating the ultimate protection for the electrical system.

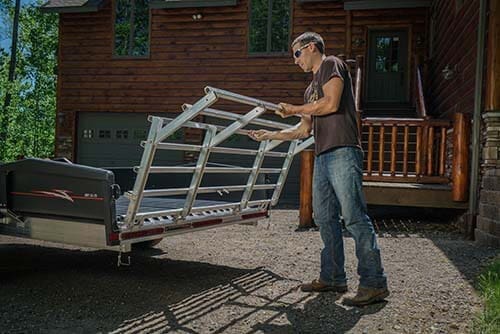

Tailgate Ramp
The CargoMax™ tailgate ramp system features two loading angles. “Level Ramp Mode” is for higher clearance vehicles such as ATVs, and “Limited Tilt Mode” for low clearance vehicles like motorcycles and lawn mowers.

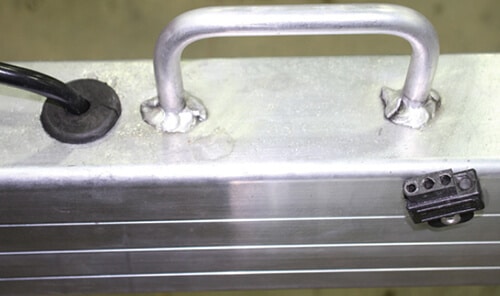

Tongue Grab Handle
Helps to ease trailer movement to and from a vehicle. The handle makes moving the aluminum utility trailer around very easy. Empty tongue weight is only 33 lbs.

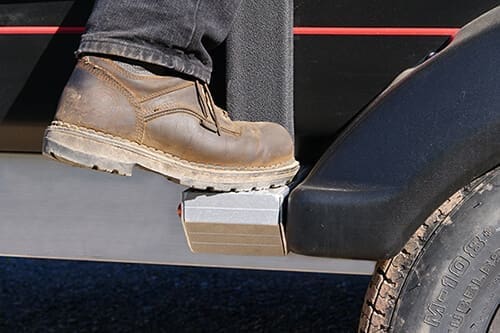

Side Step
Located on each side of the wheel well for easy access in and out of your trailer. Standard on 9.5′ x 73″, 11′ x 73″, 13′ x 73″ models.

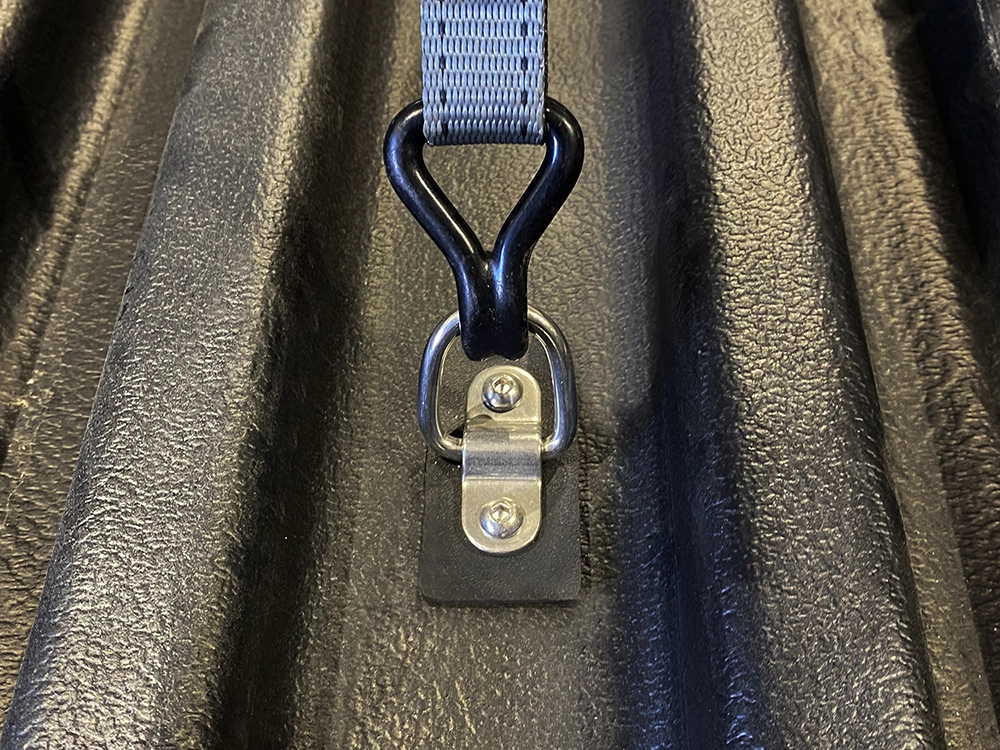

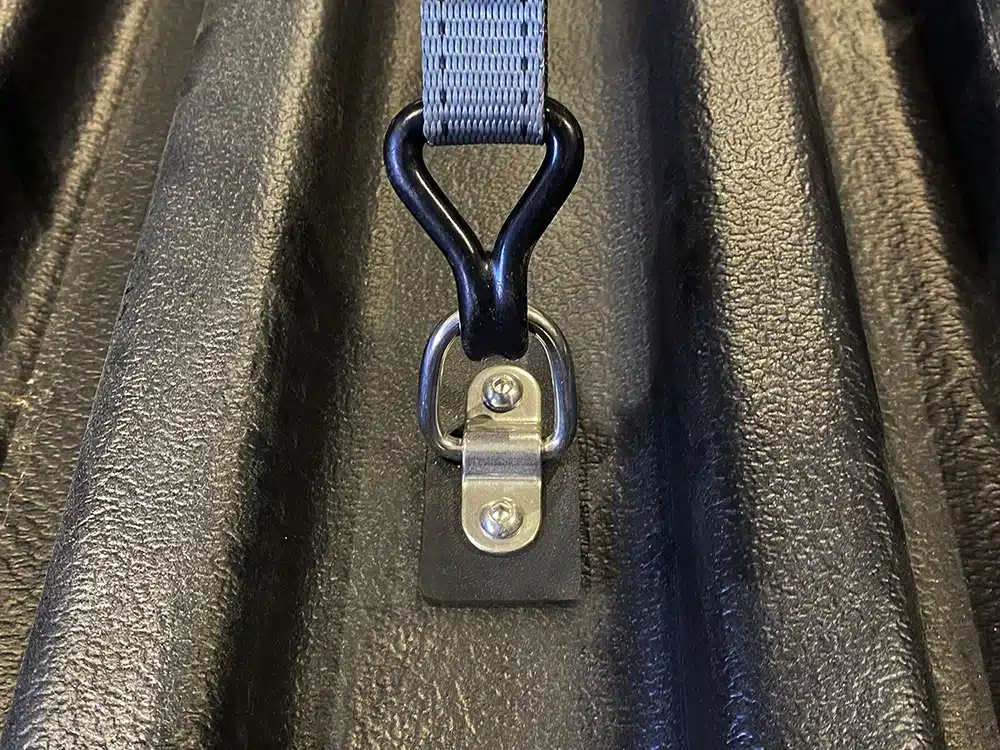

Cargo D-Ring Tie Downs
The foldaway D-Ring anchors are strategically placed for maximum payload and security. The 8-57 anchors are rated up to 500 lbs each while the 9.5-73, 11-73 and 13-73 anchors are rated up to 1,667 lbs each.

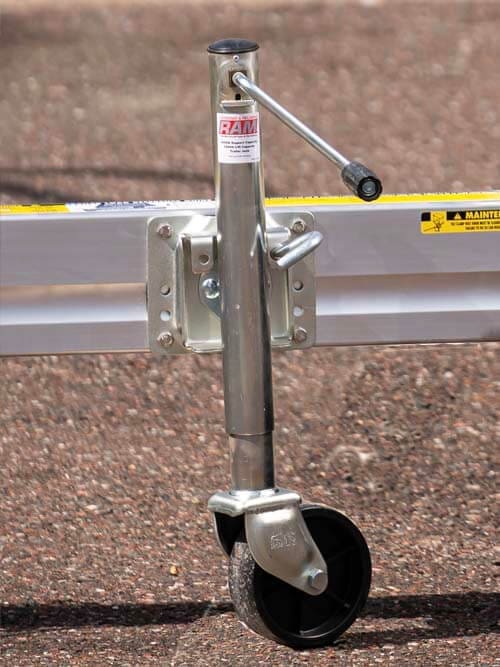

Swivel Tongue Jack
Allows for easier trailer movement by hand. Can be pivoted up for travel and bolts easily through pre-drilled holes in tongue.

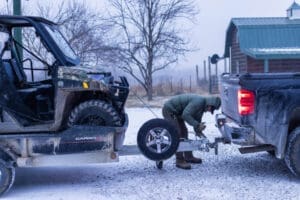

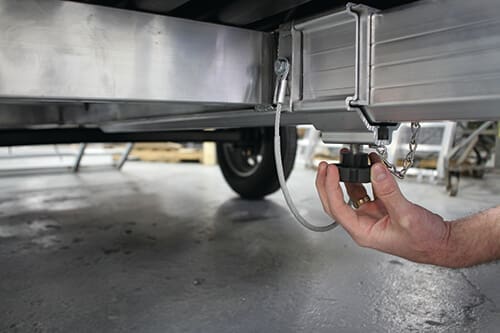

Patented Fast-Action Tilt Clamp
Pulls the tongue tight and eliminates noise and vibration. Eliminates hitch pin and hole alignment issues creating a better all-around system.
January 26, 2023
I bought my first “utility trailer” in 1970, and since then I have had them all, searching for the perfect trailer.
From single bed, steel to double bed, galvanized to aluminum. Hauling snowmobiles, ATV’s, garden supplies or construction material. Single axel, double axel, bed over, flotation tires and regular trailer tires. So it’s fair to say that I can speak from firsthand experience when I evaluate a utility trailer. I am not a paid sponsor or critic, I’m just a regular guy who knows perfection when I see it, and it’s called FLOE.
Living in western New York I could not find any inventory in my area so I traveled nearly 200 miles, to Jefferson Hills, Pa. There I contacted “All City Trailers” and spoke with the owner, Gaspare, who immediately assisted me with a purchase of a Cargo Max, 9 ½ by 73 trailer. My most concerning question is, “Where have you been for the past 50 years”?
I bet if I had purchased the Cargo Max back then this letter would not be one of recent satisfaction but one of congratulation for manufacturing a utility trailer that I have used with pleasure for the past 50 years.
The polymer bed on top of an all-aluminum frame is simply the best. Large tires, easy trailer positioning, smartly placed tie-downs, protected lighting and light weight maneuverability makes this trailer stand on the top of the list of great trailers. The most satisfying aspect of this trailer is its balance and weight which allows a youngster like me to push the trailer by hand for easy loading and storage. No jacks, no ATV’s and no more worrying about calling my neighbor over to help me remove the trailer from my vehicle or to push is around the yard for storage. (which normally costs me a six pack)
So please accept this as my 50 year evaluation of the best utility trailer ever made—lts FLOE, hands down.
-Ron Evangelista
CargoMax™ Accessories

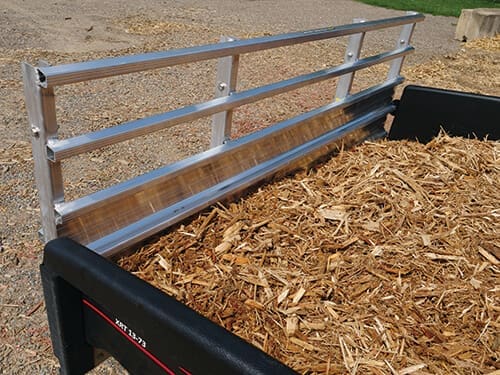

Gate Keeper
For holding in bulk items, such as mulch or dirt.
2-piece system fits between the bottom two rungs of the gate.
Add-on pieces are available to enclose all rungs.

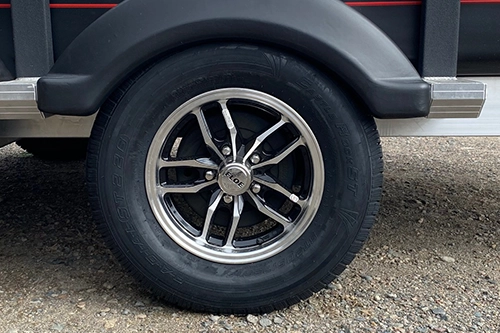

Mag Wheels
Aluminum mag wheels are standard on all 9.5-73, 11-73, and 13-73 models and they are available as an upgrade on the 8-57 model.

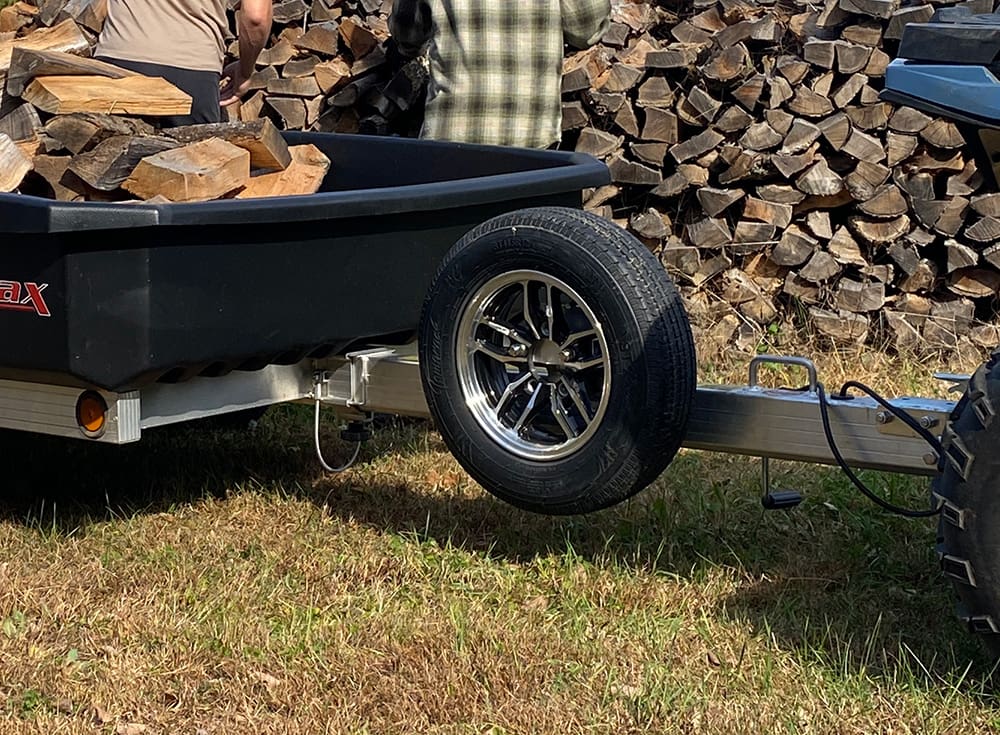

Spare Tire Carrier
Keep your CargoMax™ on the road in the event of the unexpected.
CargoMax™ Feature Videos
CargoMax™ Product Videos
CargoMax™ Durability Videos
CargoMax™ Influencer Videos
Visit them on YouTube
CargoMax™ Customer Testimonials
CargoMax™ Gallery
Where Can you find FLOE?
FLOE products are sold through a professional dealer network across the US and Canada. Use our dealer locator to find Floe products near you.
