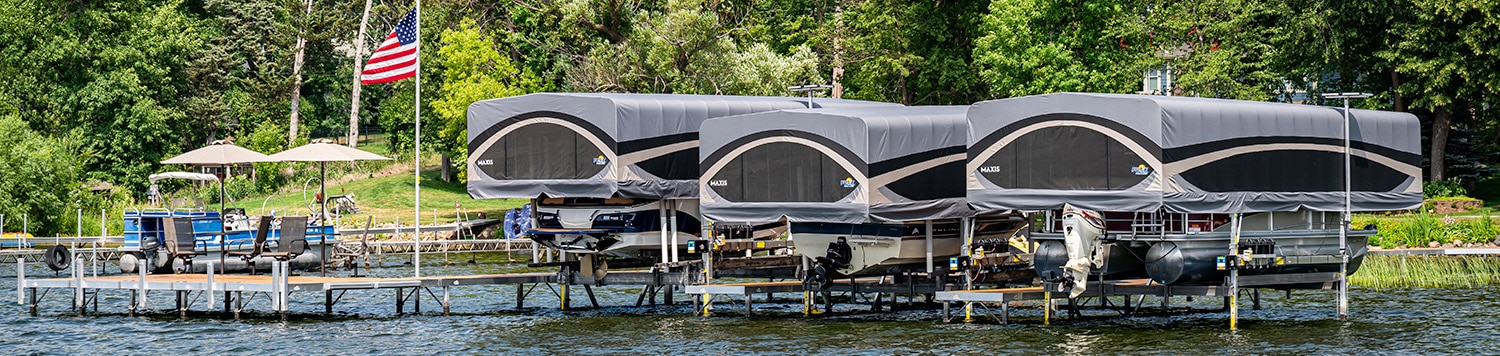

Vertical Boat Lifts

There’s a reason FLOE aluminum boat lifts are boat owner’s first choice throughout the US and Canada. With its 15 year limited warranty, FLOE boat lifts lead the industry in technology and design.

FLOE’s vertical boat lifts and pontoon boat lifts accommodate watercraft ranging from 2,000 to 10,000 lbs. The bolt-together design uses lock-nuts to keep the frame components tight and eliminates structural welds that can wear out and fatigue over time. The sturdy V-brace frame design is the most rigid available while still allowing easy access to the boat. The main cradle beam lowers to 9.5 inches from the ground, allowing for smooth operations in less water than other vertical boat lifts.

Visit FLOE’s Facebook page reviews to see what people are saying about FLOE products.

VSD Boat Lifts

FLOE’s VSD technology lowers and raises your boat or pontoon in about one-half the time of most other powered boat lifts. It’s the most energy-efficient vertical boat lift in the world. The drive train is whisper quiet with no clicking winch gears or pinging cable.

The low-maintenance electric motor spins the screw so the ball nut travels back and forth as it pulls the lifting cable. The industrial strength ball-screw is rated for 20,000 cycles at 10,000 lbs. No need to ever replace a worn winch cable with a VSD boat lift!

Quickly raise and lower your boat with the push of a button using FLOE’s Wired Remote. The 30-foot cord makes it convenient to position anywhere on the boat lift and has a key switch so you can turn off your lift when you are not at the lake.

Add an optional Wireless Remote to operate your boat lift from a distance with no cord. Other options include a Flood Light system that plugs into the wireless system and a Solar Charging Panel so you’ll never have dead batteries.

Vsd boat Lift Models

FLOE’s state-of-the-art, industrial-strength Vertical Screw Drive [VSD] boat lifts and pontoon lifts are the perfect choice for those who want the best of the best. The VSD boat lift is designed to be easy to use, quiet and fast, raising your boat in about half the time of other lifts. VSD aluminum boat lifts are available in  a 24-volt DC version. Models include:

VSD 3800

VSD 5000

VSD 5000 Pontoon

VSD 6500

VSD 6500 Pontoon

VSD 8000

VSD 8000 Pontoon

VSD 10000

VSD 10000 Standard

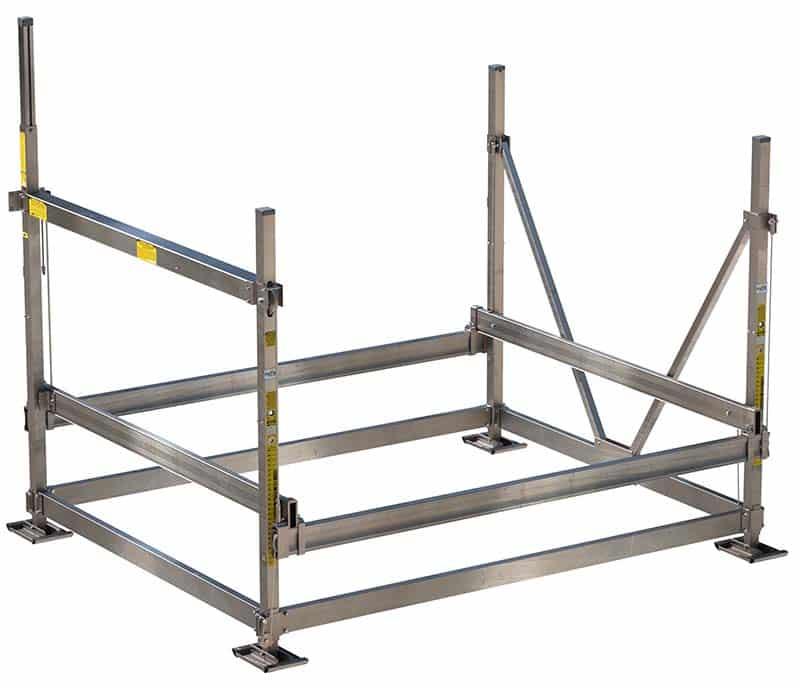

VSD 3800

This boat lift is ideal for medium sized fishing boats, runabouts, ski boats, jet boats & small to medium sized pontoon boats.

Bed Travel: 52″
Inside Width: 119″
Outside Width: 135″
Outside Length: 114″
Leg Travel: 30″
Frame Weight: 538 lbs
Inside Width with Single Vertical Guides: 107.5″
Inside Width with Double Vertical Guides: 110″
Inside Width with Horizontal Guides: 107.5″
Inside Width with Perfect Park Guides: 110″
Winch Options: 24-volt DC VSD or 120-volt AC VSD
Canopy Sizes: 22′, 24′, 26′, 28′ or 30′

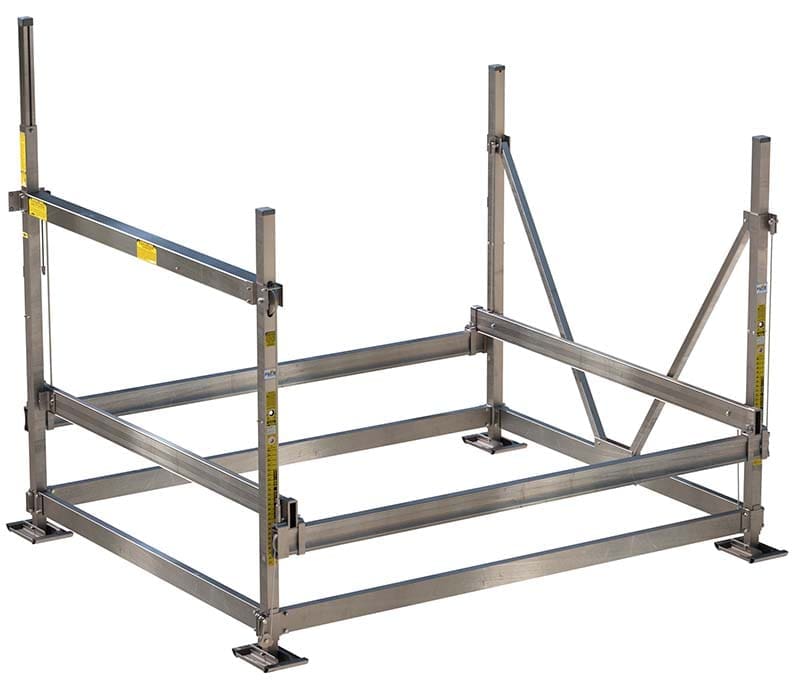

Vsd 3800
Bunk Options:
  • Boat and Pontoon Cradle Pads
  • Full-Length Boat Bunks
  • Full-Length Pontoon Bunks
  • Pontoon Bunks/Guide-In’s
Guide-In Options:
  • Pro-Park
  • Precision Park
  • Perfect Park

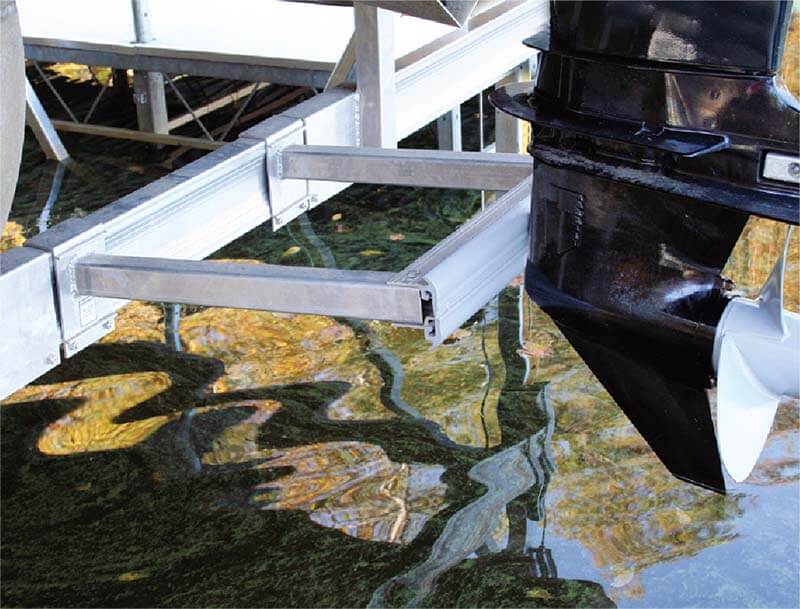

  • Motor Stop

VSD 5000

This boat lift is ideal for medium sized fishing boats, runabouts, ski boats, jet boats & small to medium sized pontoon boats.

Bed Travel: 52″
Inside Width: 119″
Outside Width: 135″
Outside Length: 114″
Leg Travel: 30″
Frame Weight: 538 lbs
Inside Width with Single Vertical Guides: 107.5″
Inside Width with Double Vertical Guides: 110″
Inside Width with Horizontal Guides: 107.5″
Inside Width with Perfect Park Guides: 110″
Winch Options: 24-volt DC VSD or 120-volt AC VSD
Canopy Sizes: 22′, 24′, 26′, 28′ or 30′

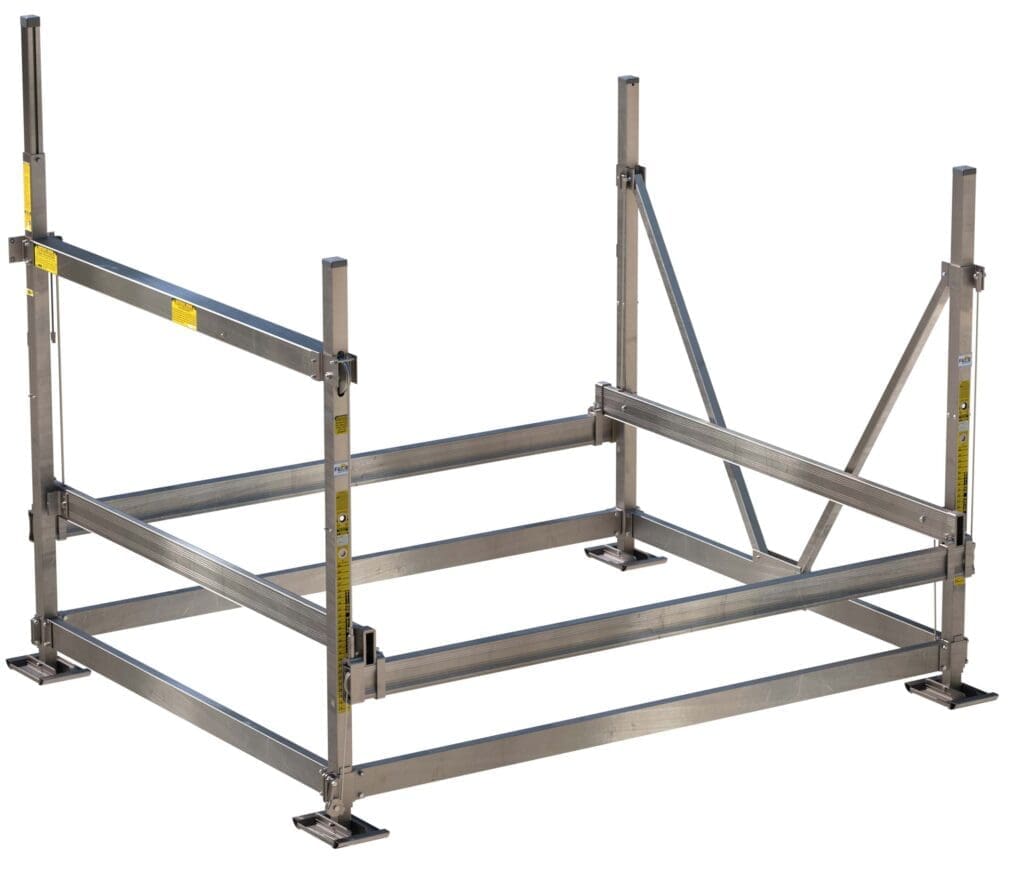

Vsd 5000 1024x875
Bunk Options:
  • Boat and Pontoon Cradle Pads
  • Full-Length Boat Bunks
  • Full-Length Pontoon Bunks
  • Pontoon Bunks/Guide-In’s
Guide-In Options:
  • Pro-Park
  • Precision Park
  • Perfect Park
  • Motor Stop

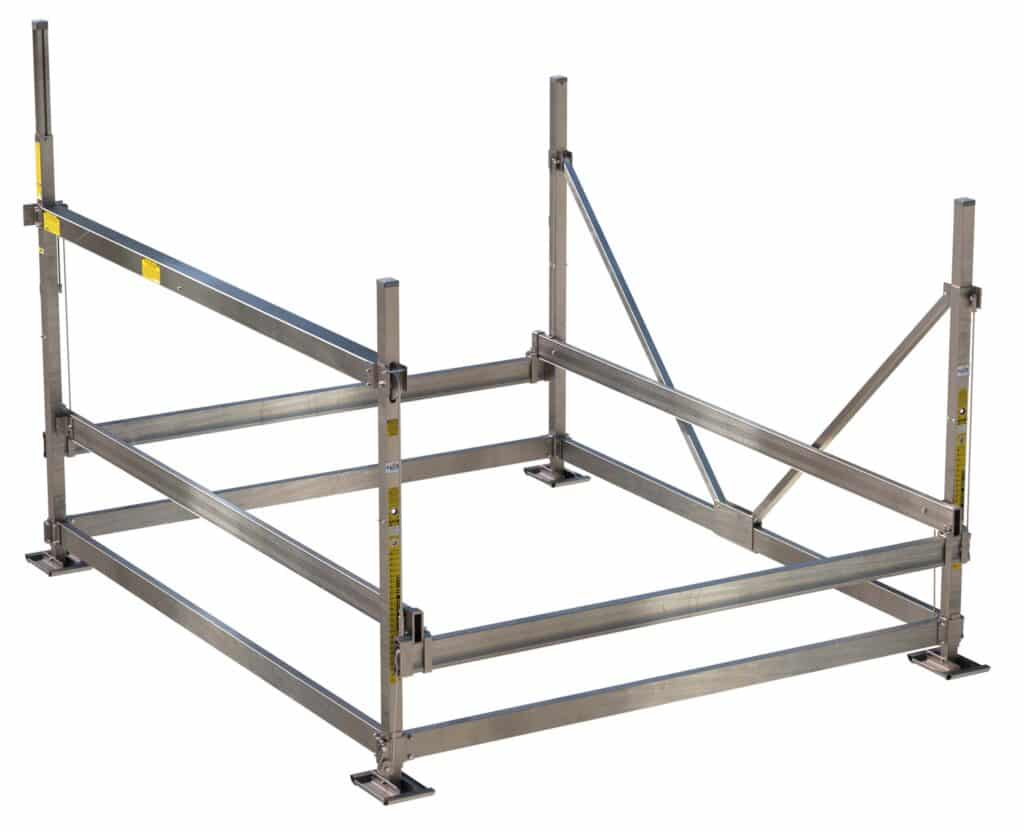

VSD 5000 Pontoon

Wider and longer lift is ideal for today’s larger pontoons.

Bed Travel: 52″
Inside Width: 119″
Outside Width: 135″
Outside Length: 162″
Leg Travel: 30″
Frame Weight: 632 lbs
Inside Width with Single Vertical Guides: 107.5″
Inside Width with Double Vertical Guides: 112″
Inside Width with Horizontal Guides: 107.5″
Inside Width with Perfect Park Guides: 110″
Winch Options: 24-volt DC VSD or 120-volt AC VSD

Canopy Sizes: 22′, 24′, 26′, 28′ or 30′

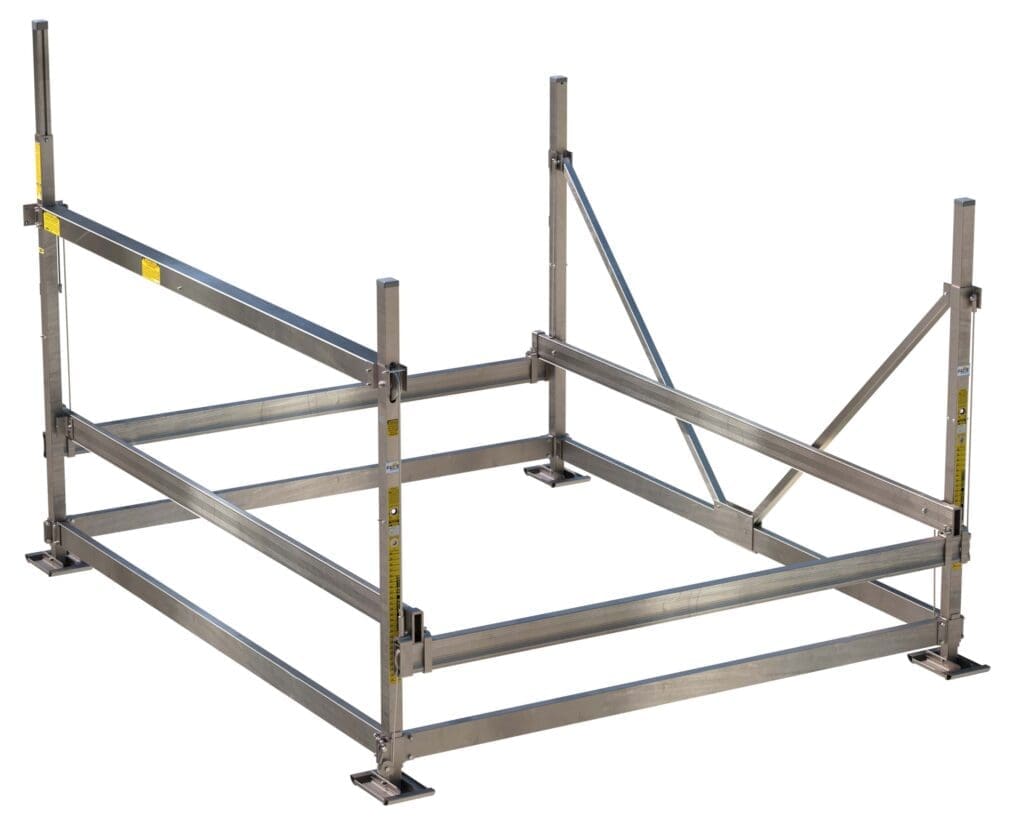

Vsd 5000p 1024x831
Bunk Options:
  • Pontoon Cradle Pads
  • Full-Length Pontoon Bunks
  • Pontoon Bunks/Guide-In’s
Guide-In Options:
  • Pro-Park
  • Perfect Park
  • Motor Stop

VSD 6500

Ideal for large wakeboard boats & speed boats, medium sport fishers and small to medium cruisers.

Bed Travel: 60″
Inside Width: 116″
Outside Width: 135″
Outside Length: 131″
Leg Travel: 35″
Frame Weight: 731 lbs
Inside Width with Single Vertical Guides: 103.5″
Inside Width with Double Vertical Guides: 107″
Inside Width with Horizontal Guides: 103.5″
Inside Width with Perfect Park Guides: 107″
Winch Options: 24-volt DC VSD or 120-volt AC VSD
Canopy Sizes: 22′, 24′, 26′, 28′, 30′, 32′ or 34′

Vsd 5000 1024x875
Bunk Options:
  • Boat and Pontoon Cradle Pads
  • Full-Length Boat Bunks
  • Full-Length Pontoon Bunks
  • Pontoon Bunks/Guide-In’s
Guide-In Options:
  • Pro-Park
  • Precision Park
  • Perfect Park
  • Motor Stop

VSD 6500 Pontoon

For larger tri-toon pontoons. 239” full-length bunks sold separately (for pontoons only – not to be used for boats).

Bed Travel: 60″
Inside Width: 116″
Outside Width: 135″
Outside Length: 167″
Leg Travel: 35″
Frame Weight: 770 lbs
Inside Width with Single Vertical Guides: 103.5″
Inside Width with Double Vertical Guides: 107″
Inside Width with Horizontal Guides: 103.5″
Inside Width with Perfect Park Guides: 107″
Winch Options: 24-volt DC VSD or 120-volt AC VSD
Canopy Sizes: 22′, 24′, 26′, 28′, 30′, 32′ or 34′

Vsd 5000p 1024x831
Bunk Options:
  • Pontoon Cradle Pads
  • Full-Length Pontoon Bunks
  • Pontoon Bunks/Guide-In’s
Guide-In Options:
  • Pro-Park
  • Perfect Park
  • Motor Stop

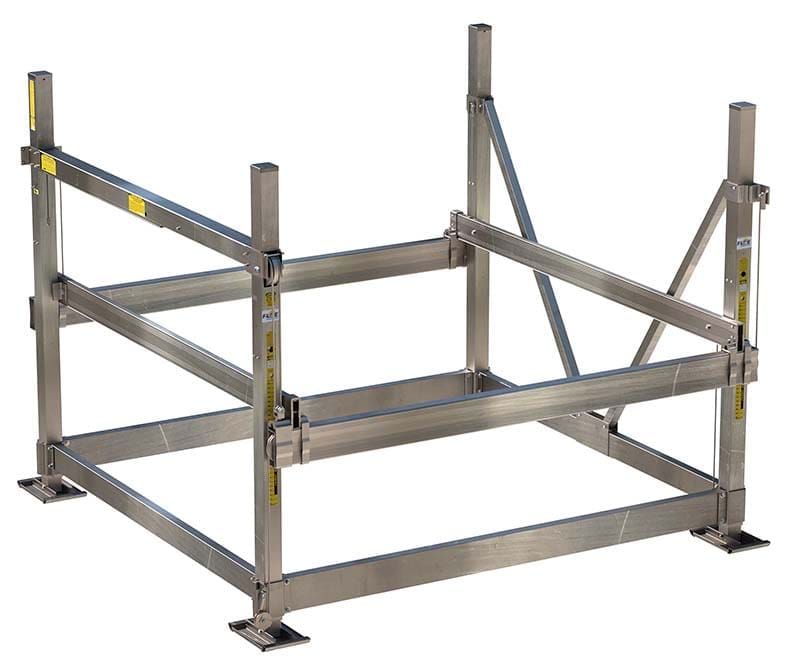

VSD 8000

Ideal for large wakeboard boats & speed boats, medium sport fishers and small to medium cruisers.

Bed Travel: 60″
Inside Width: 116″
Outside Width: 135″
Outside Length: 131″
Leg Travel: 35″
Frame Weight: 731 lbs
Inside Width with Single Vertical Guides: 103.5″
Inside Width with Double Vertical Guides: 107″
Inside Width with Horizontal Guides: 103.5″
Inside Width with Perfect Park Guides: 107″
Winch Options: 24-volt DC VSD or 120-volt AC VSD
Canopy Sizes: 22′, 24′, 26′, 28′, 30′, 32′ or 34′

Vsd 8000
Bunk Options:
  • Boat and Pontoon Cradle Pads
  • Full-Length Boat Bunks
  • Full-Length Pontoon Bunks
  • Pontoon Bunks/Guide-In’s
Guide-In Options:
  • Pro-Park
  • Precision Park
  • Perfect Park
  • Motor Stop

VSD 8000 Pontoon

For larger tri-toon pontoons. 239” full-length bunks sold separately (for pontoons only – not to be used for boats).
Bed Travel: 60″
Inside Width: 116″
Outside Width: 135″
Outside Length: 167″
Leg Travel: 35″
Frame Weight: 770 lbs
Inside Width with Single Vertical Guides: 103.5″
Inside Width with Double Vertical Guides: 107″
Inside Width with Horizontal Guides: 103.5″
Inside Width with Perfect Park Guides: 107″
Winch Options: 24-volt DC VSD or 120-volt AC VSD
Canopy Sizes:22′, 24′, 26′, 28′ 30′, 32′ or 34′

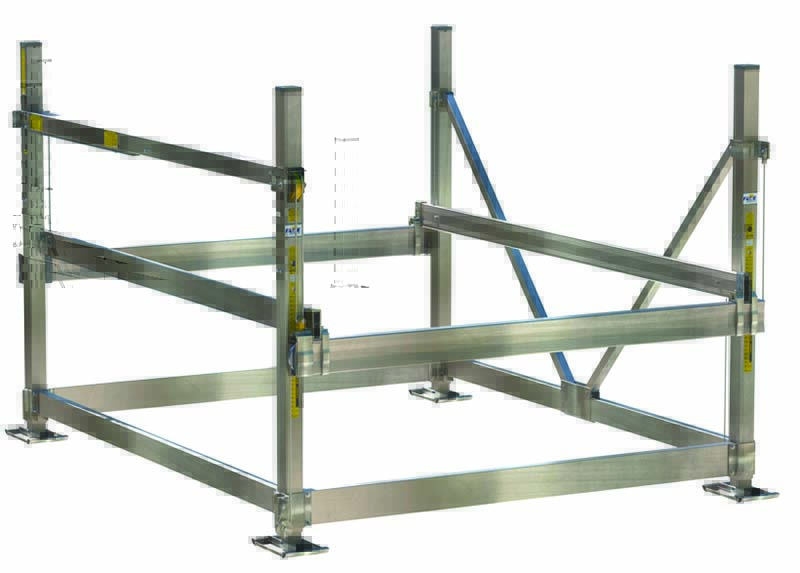

Vsd 8000p
Bunk Options:
  • Pontoon Cradle Pads
  • Full-Length Pontoon Bunks
  • Pontoon Bunks/Guide-In’s
Guide-In Options:
  • Pro-Park
  • Perfect Park
  • Motor Stop

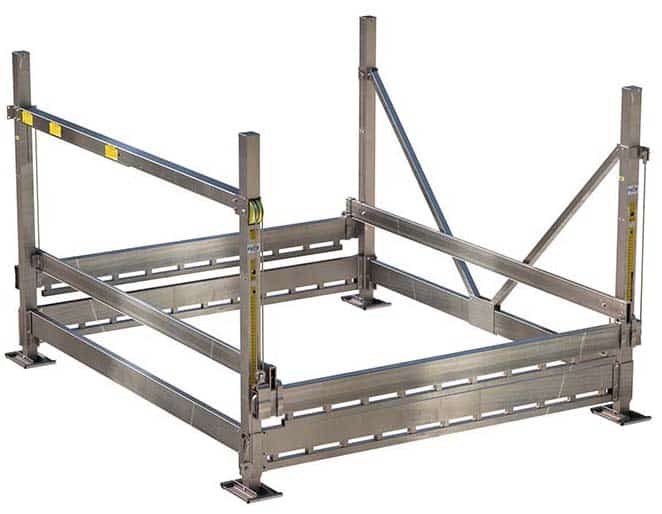

VSD 10000

This boat lift offers the strength and size needed for the larger heavier crafts.

Bed Travel: 52″
Inside Width: 131″
Outside Width: 147″
Outside Length: 167″
Leg Travel: 35″
Frame Weight: 1010 lbs
Inside Width with Single Vertical Guides: 116.5″
Inside Width with Double Vertical Guides: 120″
Inside Width with Horizontal Guides: 115.5″
Inside Width with Perfect Park Guides: 119″
Winch Options: 24-volt DC VSD
Canopy Sizes: 28′, 32′ or 34′

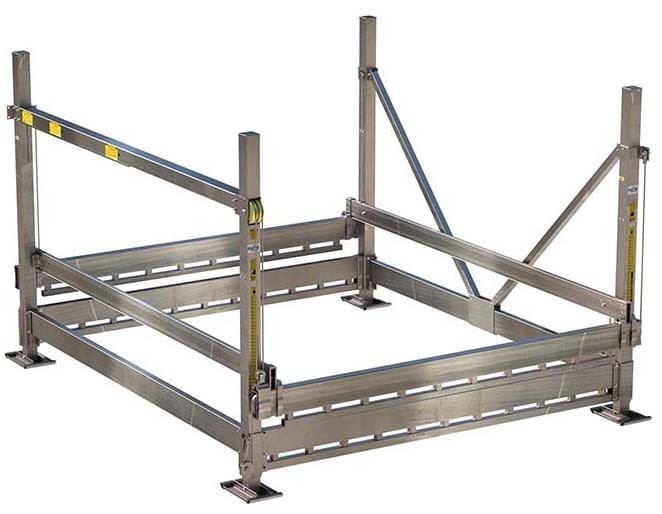

Vsd 10000w
Bunk Options:
  • Boat and Pontoon Cradle Pads
  • Full-Length Pontoon Bunks
Guide-In Options:
  • Pro-Park
  • Perfect Park
  • Motor Stop

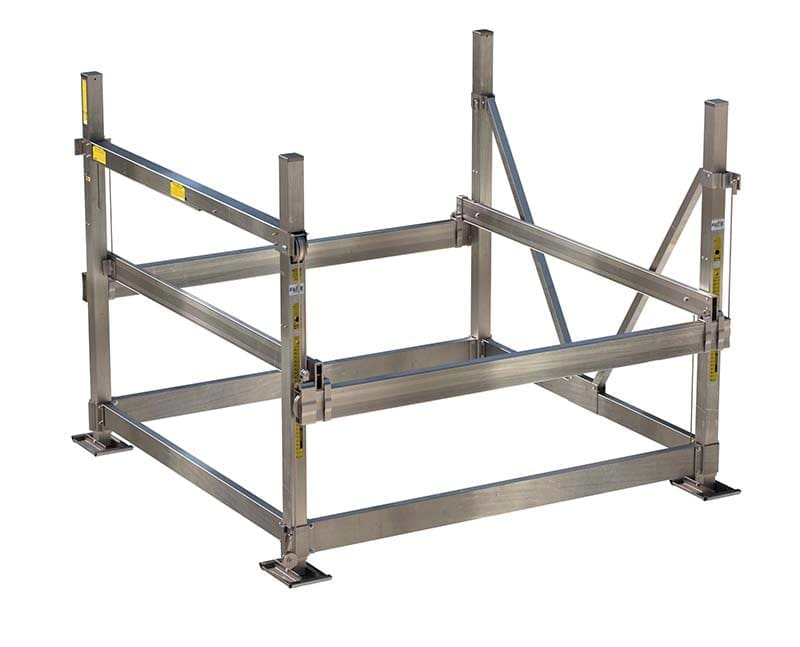

VSD 10000 Standard

This boat lift offers the strength and size needed for larger surf boats.
Bed Travel: 60″
Inside Width: 116″
Outside Width: 135″
Outside Length: 167″
Leg Travel: 35″
Frame Weight: 796 lbs
Inside Width with Single Vertical Guides: 103.5″
Inside Width with Double Vertical Guides: 107″
Inside Width with Horizontal Guides: 103.5″
Inside Width with Perfect Park Guides: 107″
Winch Options: 24-volt DC VSD
Canopy Sizes:22′, 24′, 26′, 28′ 30′, 32′ or 34′

V3600 Lift
Bunk Options:
  • Boat and Pontoon Cradle Pads
  • Full-Length Boat Bunks
  • Full-Length Pontoon Bunks
  • Pontoon Bunks/Guide-In’s
Guide-In Options:
  • Pro-Park
  • Perfect Park
  • Motor Stop

v boat lifts

12 Volt or Manual Winches

FLOE’s 12-volt DC electric boat lift winch lets you easily raise and lower your boat or pontoon with the push of a button. It includes a wired remote with 30′ cord that has a key switch allowing you to turn off the lift when you are away.

This system offers exceptional value compared to other power boat lift winch systems and includes a battery box with a built-in Battery Conditioner Indicator.

There’s also a manual winch with a crank wheel option that fits all FLOE vertical winch boat lifts. This heavy-duty gear-reduced winch features an automatic load-holding brake, a large easy-to-crank wheel with a speed knob, and a strong 5/16″ flexible stainless cable.



V boat Lift Models

FLOE vertical boat lifts featuring electric 12-volt and manual winches are built with the same craftsmanship as the VSD lifts. Aluminum winch boat lifts are strong and long-lasting.

V 1600

V 2000

V 2602

V 3600

V 4600

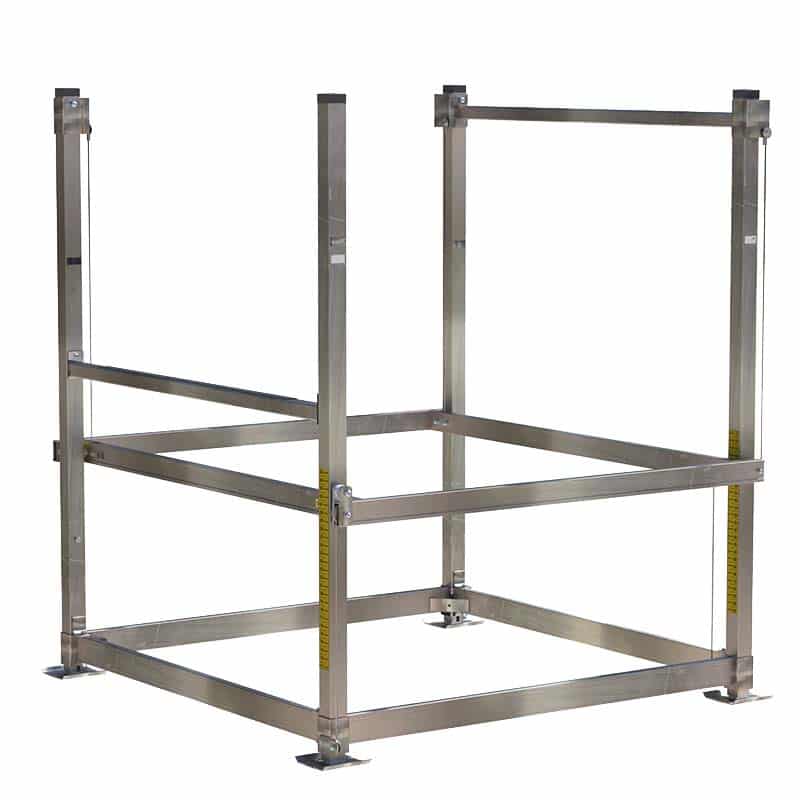

V 1600

The V1600 vertical winch lift is the perfect boat lift for today’s PWCs. A full 56” of vertical travel and an optional 14’ canopy system ensure your watercraft will be high and dry.

Bed Travel:
51″
Inside Width: 60″
Outside Width: 73.25″
Outside Length: 73.125″
Leg Travel: 24″
Frame Weight: 155 lbs
Inside Width w/Single Vertical Guides: 55″
Bunk Options: Full-Length Boat Bunks are included
V1600 Lift

V 2000

The V2000 winch lift is ideal for small to medium-sized fishing boats, roundabouts, and jet boats.

Bed Travel: 52″
Inside Width: 93.5″
Outside Width: 109″
Outside Length: 102″
Leg Travel: 30″
Frame Weight: 225 lbs
Inside Width with Single Vertical Guides: 82″
Inside Width with Double Vertical Guides: 84.5″
Inside Width with Horizontal Guides: 82″
Inside Width with Perfect Park Guides: 84.5″
Winch Options: 36″ Crank Wheel or 12-Volt DC

Bunk Options:
  • Cradle Pads
  • Full-Length Boat Bunks
  • Canopy Sizes: 20′, 22′ or 24′
Guide-In Options:
  • Pro-Park
  • Precision Park
  • Motor Stop

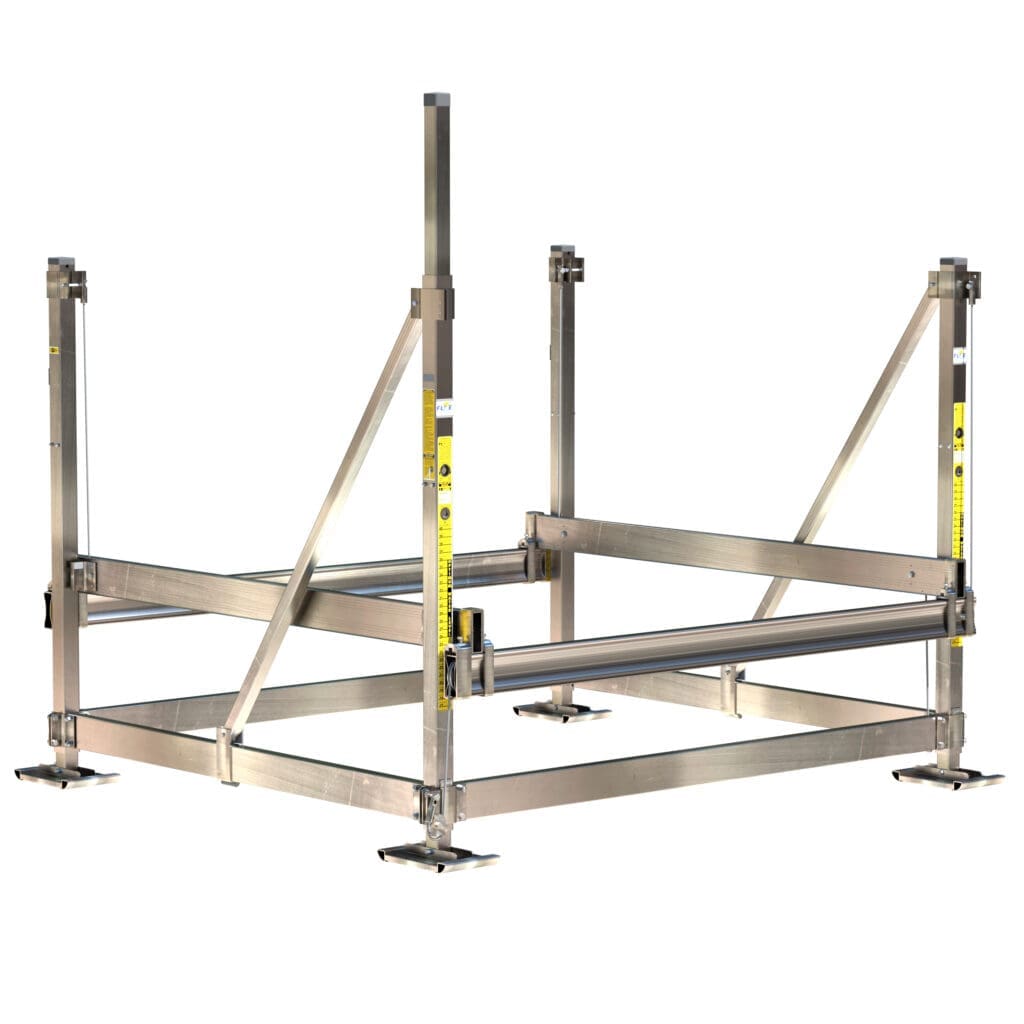

Floe V2000 Lift Copy 1024x1024

V 2602

This V2602 double PWC lift has two pair of full length bunks that are adjustable at staggered heights so you can let one jet ski down at a time.

Bed Travel: 52″
Inside Width: 119″
Outside Width: 135″
Outside Length: 66″
Leg Travel: 30″
Frame Weight: 268
Inside Width with Single Vertical Guides: 107.5″
Inside Width with Double Vertical Guides: 110″
Canopy Sizes: 12′ or 14′

Winch Options:
  • 36″ Crank Wheel
  • 12-volt DC
Bunk Options:
  • Cradle Pads
  • Full-Length Boat Bunks
Guide-In Options:
  • Pro-Park
  • Motor Stop 66″

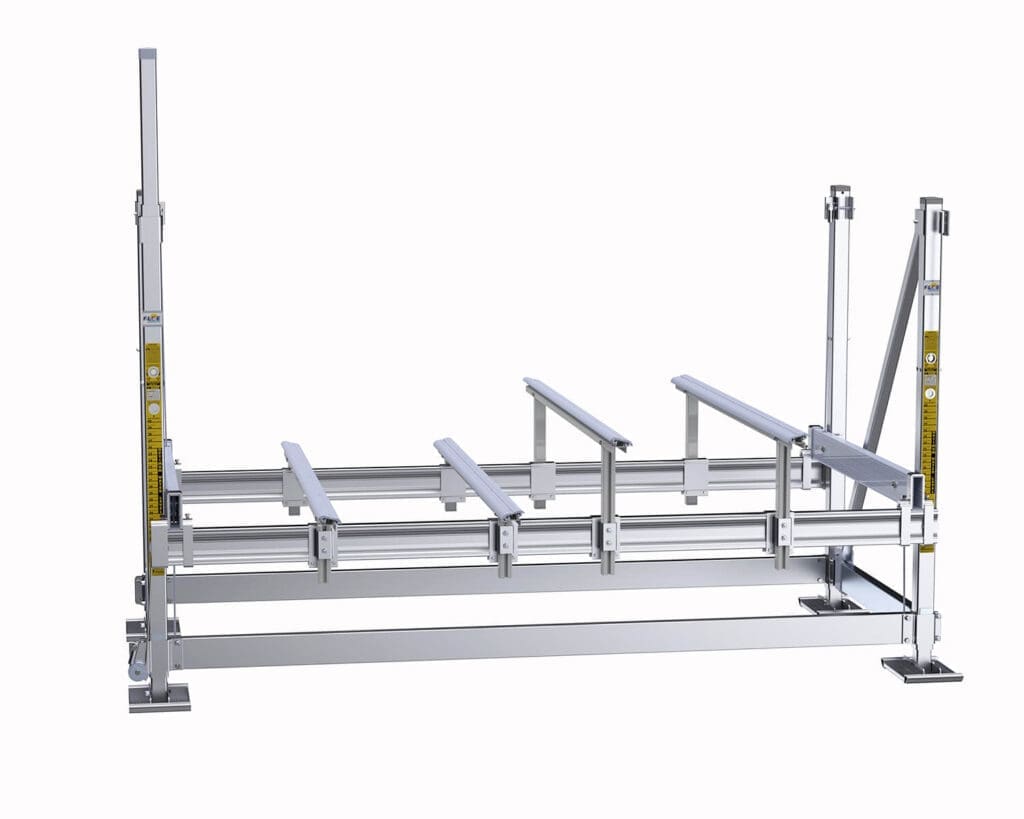

V2602 With Two Sets Full Length Bunks2 1024x819

V 3600

The V3600 works great for a variety of fishing boats, runabouts, ski boats, jet boats, and is a great pontoon boat lift.

Bed Travel: 52″
Inside Width: 119″
Outside Width: 135″
Outside Length: 114″
Leg Travel: 30″
Frame Weight: 372 lbs
Inside Width with Single Vertical Guides: 107.5″
Inside Width with Double Vertical Guides: 110″
Inside Width with Horizontal Guides: 107.5″
Inside Width with Perfect Park Guides: 110″
Canopy Sizes: 20′, 22′, 24′, 26′, 28′ or 30′

Bunk Options:
  • Boat or Pontoon Cradle Pads
  • Full-Length Boat Bunks
  • Full-Length Pontoon Bunks
  • Pontoon Bunks/Guide-In’s
Winch Options:
  • 42″ Crank Wheel
  • 12-volt DC

Guide-In Options:
  • Pro-Park
  • Precision Park
  • Perfect Park
  • Motor Stop

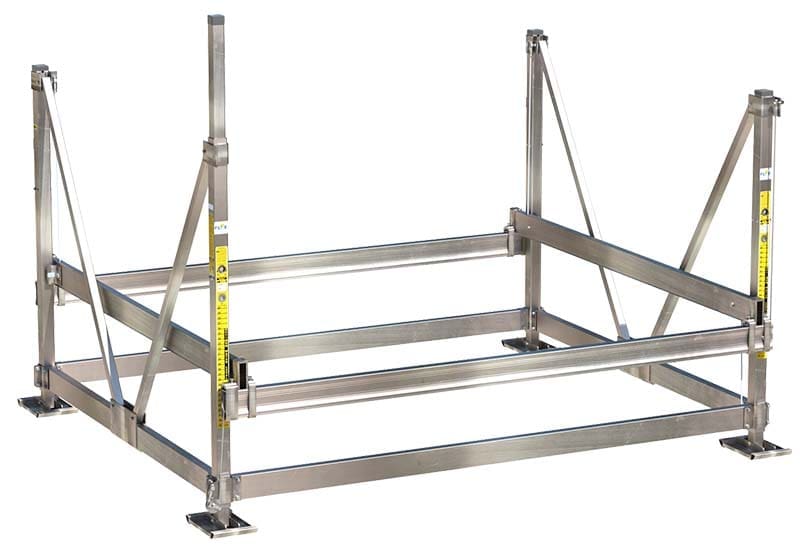

V3600 Lift

V 4600

The V4600 is perfect for a variety of fishing boats, runabouts, ski boats, jet boats, and pontoon boats.

Bed Travel: 52″
Inside Width: 119″
Outside Width: 135″
Outside Length: 114″
Leg Travel: 30″
Frame Weight: 414 lbs
Inside Width with Single Vertical Guides: 107.5″
Inside Width with Double Vertical Guides: 110″
Inside Width with Horizontal Guides: 107.5″
Inside Width with Perfect Park Guides: 110″
Canopy Sizes: 20′, 22′, 24′, 26′, 28′ or 30′

Bunk Options:
  • Boat or Pontoon Cradle Pads
  • Full-Length Boat Bunks
  • Full-Length Pontoon Bunks
  • Pontoon Bunks/Guide-In’s
Winch Options:
  • 42″ Crank Wheel
  • 12-volt DC

Guide-In Options:
  • Pro-Park
  • Precision Park
  • Perfect Park
  • Motor Stop

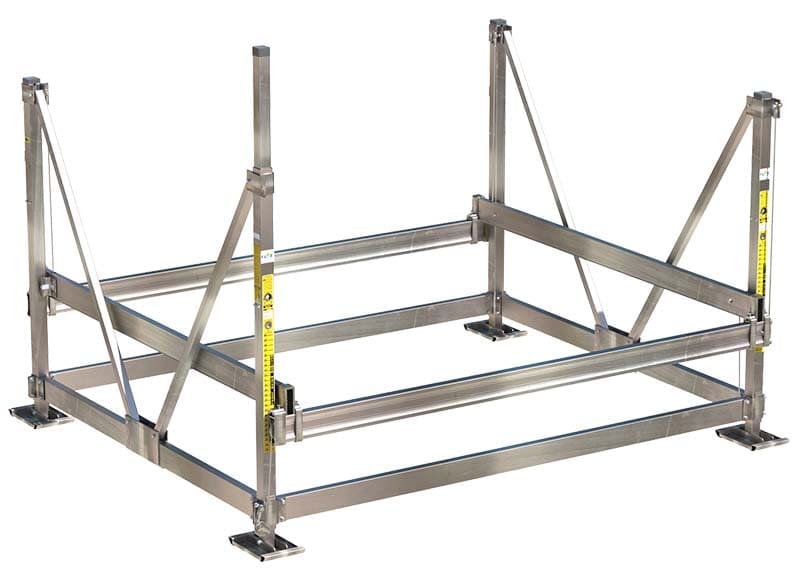

V4600 Lift

Boat Lift Features

Easy-Level™ Leveling System

All FLOE vertical boat lifts come standard with the patented Easy-Level™ system. There’s no need to get wet when adjusting the lift to the perfect height and a cordless drill is all that’s needed! Simply turn the nut inside the leg to adjust the lift up or down.

Other great benefits of the FLOE Easy-Level™ system are:

  • Infinite adjustment
  • No pins to align
  • One-person job
  • Easy seasonal adjustment as water levels fluctuate

Boat Lift Option

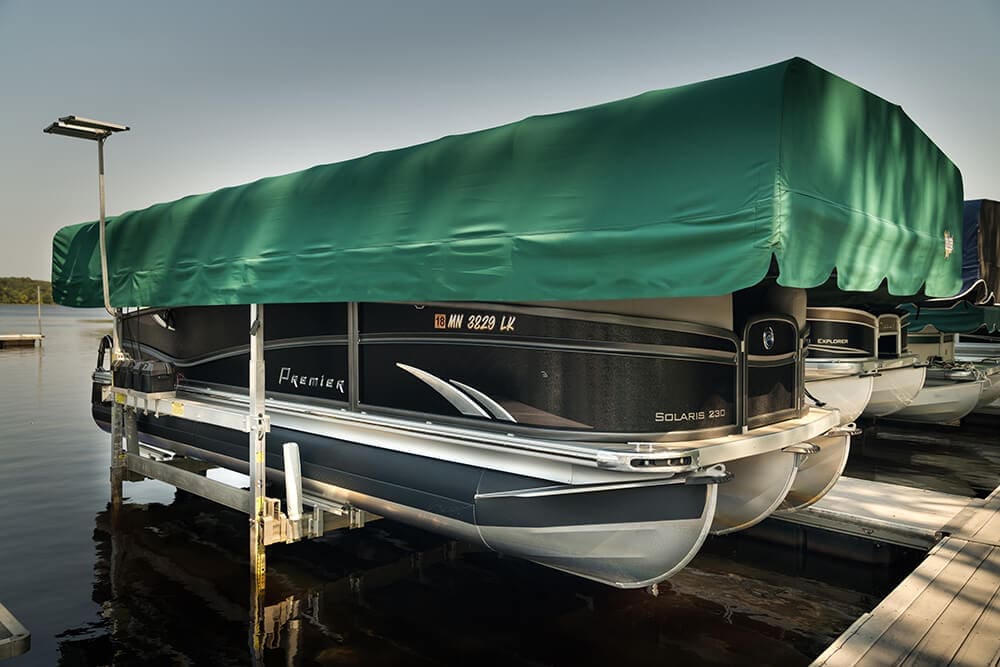

Pontoon Cradle Pad Bunk

Pontoon Cradle Pad Bunk/Guide-in System

This is the ideal choice for water depths as low as 2 feet. Four pairs of 25-inch aluminum framed bunks with maintenance-free vinyl surfaces hold pontoons safely and securely. Optional guides can be added and can be adjusted horizontally to provide effortless landings.

Full-Length Bunk

All of FLOE’s boat bunks are made from strong aluminum extrusions and equipped with an interlocked vinyl cushion that contours to boat hulls. This boat lift bunk ensures a long-lasting, maintenance-free surface that will not scratch your watercraft.

Floe Bow Support Cradle Pads Online 1024x892 Copy

Bow Support Cradle Pad Kit

Additional support for the bow on larger wakeboard boats. Used in conjunction with full-length bunks.

Pontoon Full-Length Bunk/Guide-in System

Ideal for water depths of three feet and greater, this all-in-one bunk and guide system is built with an aluminum frame with maintenance-free vinyl guides. The extended bunks guide the pontoon to a perfect landing every time. The bunks lift the boat by the frame, not the pontoons, eliminating any scratching or denting.

Cradle Pad Pivot Bunks 1024x877 Copy

Cradle Pad Pivot Bunks

Cradles support and stabilize hull and allow for infinite vertical and horizontal adjustment. These bunks are sold in pairs, with two pair recommended on most installations.

Vertical Lift Accessories

 Guide-In Systems

Perfect-Park™ Guide-In System

The ultimate boat lift parking system comes standard with 4 pairs of guide-in bumpers. The track along the top lets you slide the guides anywhere to position them perfectly for your style of boat. Additional guides are easy to add if needed.

There are separate systems for V-hull boats and for pontoons. V-hull boat systems include 4 pairs of guides with 4 guides on each side. The pontoon Perfect Parks include 2 guides for each side and two guides on each side of the curved entry that helps guide you into the lift.

Pro-Park™ Vertical Guide-In System

Pro-Park™ offers a “can’t miss” entrance guide-in system. It starts to guide your craft 20” prior to the boat entering the boat lift and again as you enter the lift. Works best with double guides on the entry and single guides at the front of the lift.

The system guides the boat by its rub rail so it never mars or touches the hull. Maintenance-free PVC guide tubes are covered by SDP fabric. The aluminum structure is adjustable horizontally to perfectly fit the width of your boat.

Precision-Park™ Horizantal Guide-In System

These full-length carpeted horizontal guides have vertical entry bumpers for smooth initial contact and two additional vertical bumpers for final contact with your boat’s rub rail for perfect alignment. The guides can be adjusted vertically and horizontally to accommodate most boat types.

Boat Lift Wheel Kits

Boat Lift Wheel Kits allow you to roll your boat lift in and out without any heavy lifting. The airtight wheels each provide about 60 pounds of flotation to lighten the lift while moving it in the water. And you can leave the wheels on the lift while it is in the water. Two pairs of wheel kits recommended for easy in/out installation and removal.

Wheels

BOW FLEX, BOW & MOTOR STOPS & STEPS

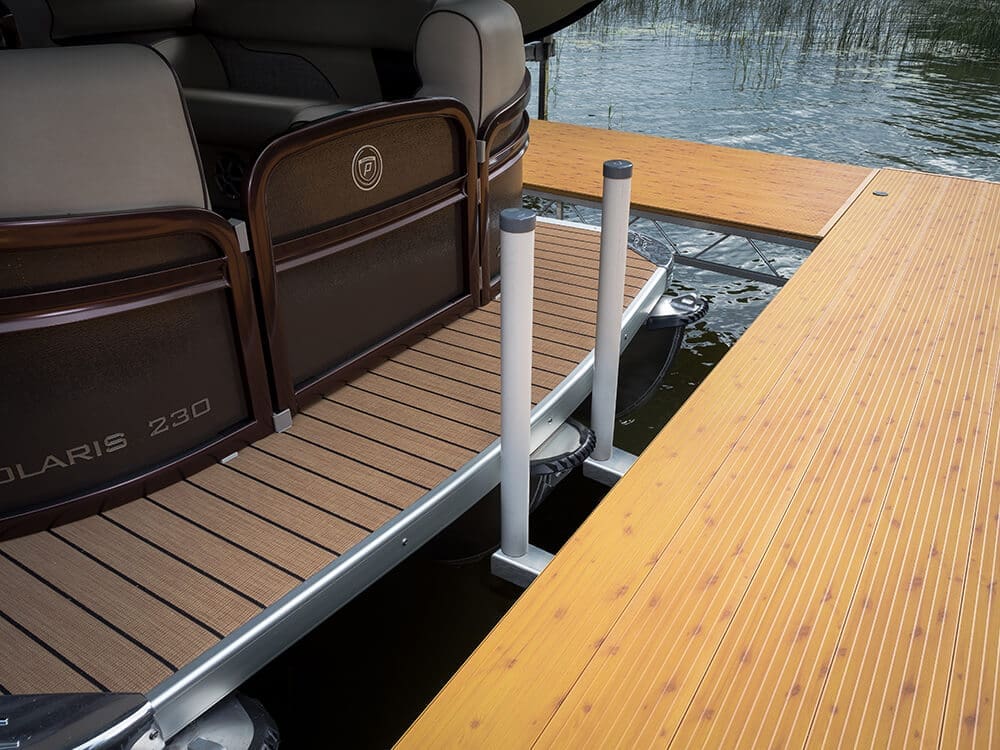

Bow Stop

Bow Stop

Park right on the money, every time. Connects to the dock in front of your lift and is adjustable to fit a boat or pontoon.

Motor Stop

Motor Stop

A motor stop halts your boat in the same location every time and keeps your boat from floating too far through the boat lift. The aluminum framework with its vinyl bumper is positioned to keep your lower unit 27 inches away from the lift cradle.

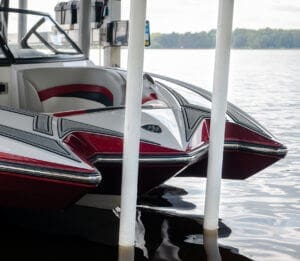

Floe Bow Flex 300x261 1

Bow Flex

PVC tubes flex forward as the boat touches them perfectly positioning your boat in the lift every time. Works great for inboards or where a motor stop isn’t the right solution. Two models available – one attaches to the side of the dock and the other connects to your boat lift with telescoping tubes making it adjustable for any length boat. Not intended to be used as a stop for your boat.

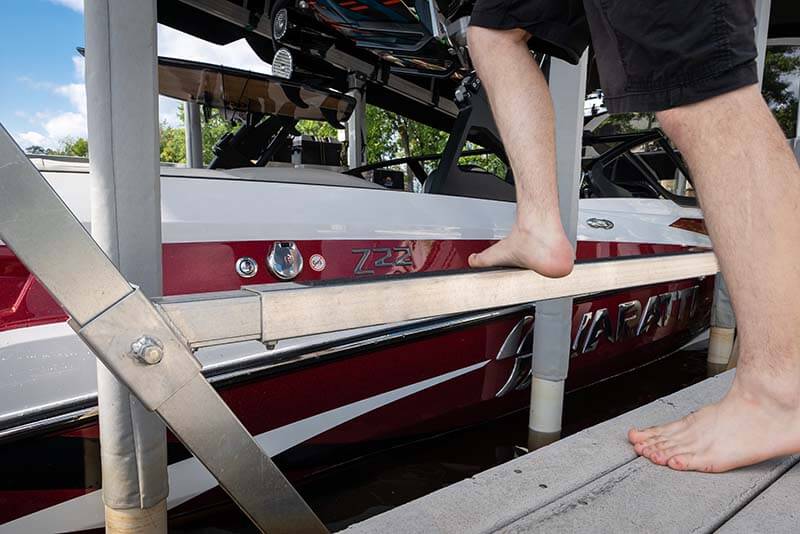

Boat Lift Step

Boat Lift Step

Enter your boat easier. Slip-proof, adjustable.

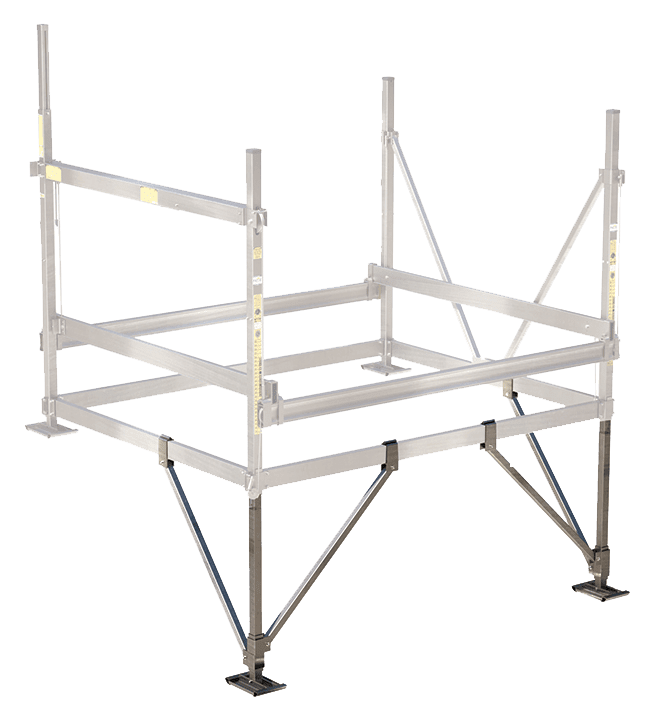

Deep Water Leg Kits

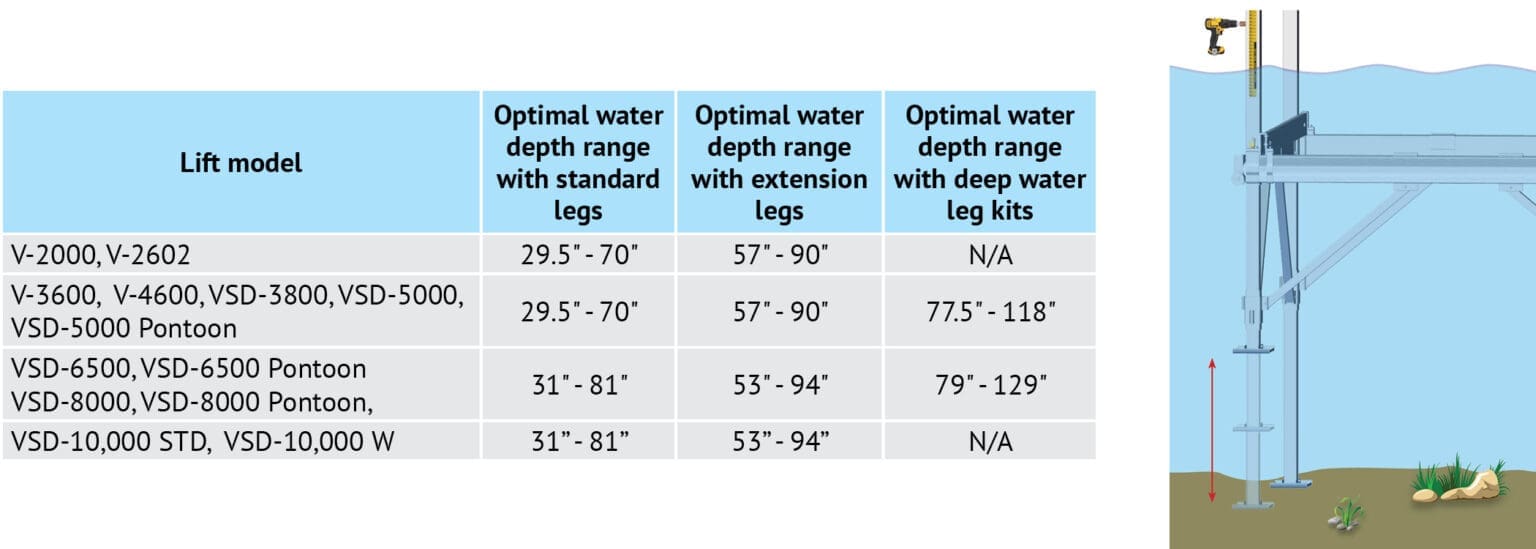

Includes two inner legs and bracing (1 pair). The inner leg is 48” longer than the current leg and has 30” of adjustment. The optimum water depth with Deep Water Leg Kits is 74”-114”. Boat lifts with deep water leg kits & canopies require 4 anchors.

Optimalwaterdepth2 1536x549
Deep Water Legs

Misc. Add-Ons

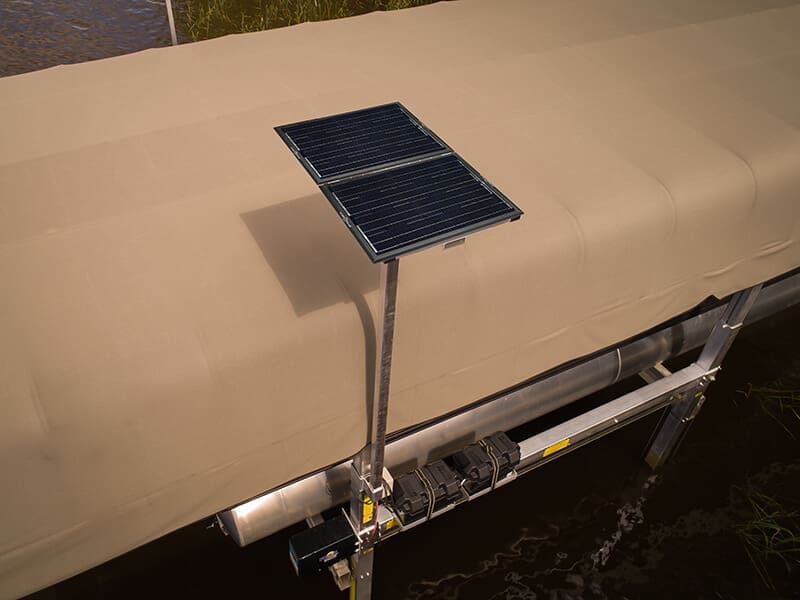

Solar

Solar Panel

FLOE’s solar charging kit includes a trickle charger and keeps your battery charged all summer. It is available with one panel for 12 V systems and two panels for 24 V systems.

Remote 1

Wireless Remote

The wireless remote works with the electric winch and VSD vertical boat lifts to offer an easy and convenient way to remotely raise and lower your boat lift. Features a range of up to 300 feet. It can be used to operate the boat lift and also an optional exterior LED flood light kit. Includes 2 remote key fobs.

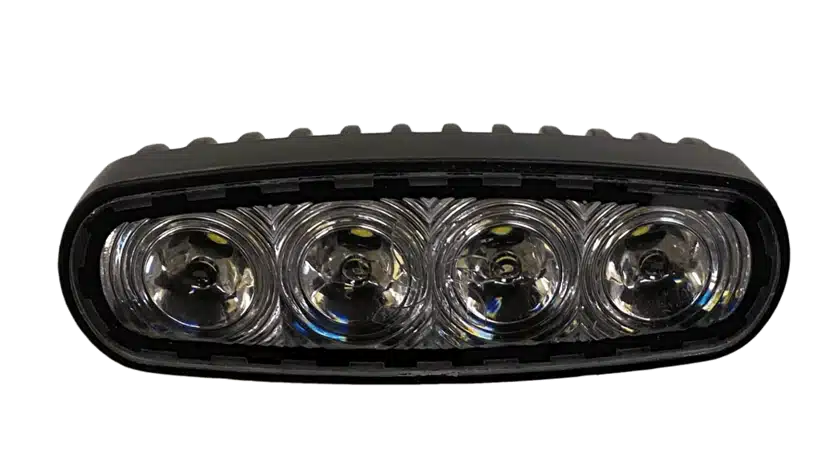

Floe Flodlight

Flood Light

12/24 Volt LED Floodlight easily attaches to your wireless receiver, providing you safety and security when accessing your dock or watercraft after dusk.

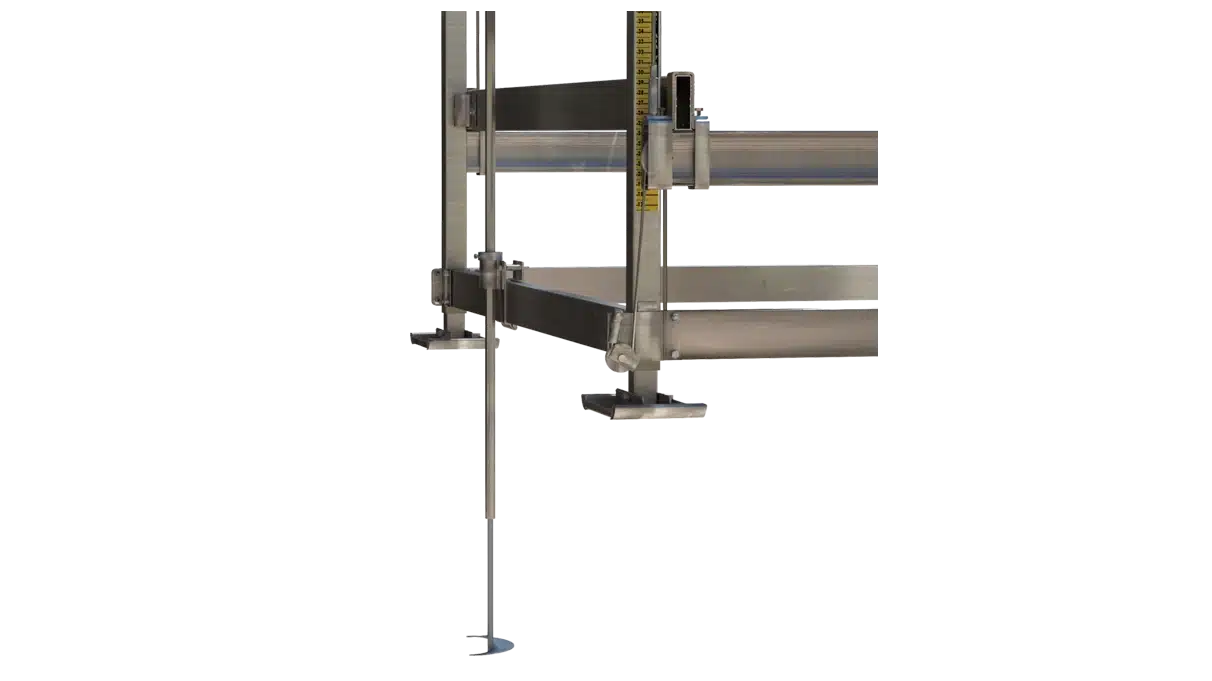

Anchor

Anchoring System

FLOE’s anchoring system is the ideal way to secure your boat lift to the lake bottom and help keep your boat safe when those inevitable storms come your way. The brackets attach to the lower frame of your lift. An extension post with augers allow you to install them from above the water line. Sold in pairs but 2 pair are recommended.

Float & Roll™ Boat Lift System

The ideal system if your boat hoist needs to be floated long distances, floated into a slip, floated into deeper water, installed in muddy bottoms, or if you just want an easy way to get your lift in the water. You can even install and level your lift without getting wet or straining a muscle.

The system incorporates a set of four wheels with two floats making it easy to just roll the boat lift into the water and float it into place. The floats are adjustable to accommodate all sizes of FLOE boat lifts.

Design a lift

Where Can you find FLOE?

FLOE products are sold through a professional dealer network across the US and Canada. Use our dealer locator to find Floe products near you.

Pontoon Cradle Pad Bunk

Standard Sectional

8′ – 97 lbs
10′ – 120 lbs
12′ – 143 lbs
4′ Wedge – 49 lbs

Quick-Attach™ Sectional

Shallow – 16 lbs
Medium – 25 lbs
Deep – 29 lbs
X Deep – 44 lbs
XX Deep – 52 lbs
