Roll-In Docks

Introducing FLOE’s New Quick-Attach Roll-in Dock. Easier, Faster, Smarter, and even better looking with the all new Chestnut finish.

40 years ago FLOE changed the game with roll-in docks by introducing modular sections with wheels on every section and Easy-Level legs, along with a bracing system to make them solid to walk on.


We are now introducing the new Quick-Attach roll-in dock. It’s Easier, Faster, Smarter, and even better looking. The next roll-in dock revolution starts now!

Take a video tour of FLOE’s Quick-Attach roll-in dock. Imagine how this can bring your shoreline to a whole new level..

Roll-In Dock Features

Easy Level™ Leveling System

FLOE’s rust-resistant, flush mounted Easy-Level™ System allows top side leveling of the lake dock without ever entering the water! All that’s needed is a cordless drill or FLOE’s leveling tool. For a clean, smooth appearance, the adjustment hole is neatly topped off with a flat plastic cap.

Double Braced Easy-Level™ Support Legs

FLOE's exclusive Quick-Attach system is Easier, Faster, and Smarter

Quick-Attach makes it simple to connect sections together and attach accessories anywhere.

Wheel & Sand Pad Choices

Choose from Wheels or Sand Pads on FLOE roll-In dock legs. Wheels make it easy to seasonally install and remove docks. A drilled wheel works best in the firm to moderately soft applications. The drilled wheel fills with water for ballast. An airtight wheel can be used in dense mud applications where the anticipated settling will be greater than 4”. The mud wheel is not drilled and adds buoyancy to ease both installation and removal of your roll-in dock.



Imagine installing or removing a dock with just one person! Each section of the FLOE dock is equipped with high-density polymer wheels so you lift less than half the weight of just one section no matter the length of the dock! Let the good times roll! Sand pads are used for installations where you leave your dock year-round or where portability is not a concern.

Leg Size
Water & Mud Depth With Wheels
Water & Mud Depth With Sand Pads
Total Travel
Extra Shallow
0" - 13"
0" - 6"
8"
Shallow
13" - 30"
5" - 23"
17"
Medium
18" - 45"
11" - 39"
27"
Deep
33" - 61"
26" - 54"
28"
Extra Deep
48" - 91"
41" - 84"
43"
Extra Extra Deep
70" - 108"
63" - 101"
38"

Roll-In Dock Sections & Components

Dock Weights

Roll-in w/o Wheel Kits

2'x10' - 78 lbs
4'x8' - 107 lbs
4'x12' - 150 lbs
4'x16' - 195 lbs
6'x12' - 222 lbs
8'x8' - 203 lbs
8'x12' - 297 lbs
8'x16' - 392 lbs
2' Wedge - 17 lbs
4' Wedge - 43 lbs
6' Wedge - 95 lbs

Roll-In Wheel Kits

Shallow - 16 lbs
Medium - 25 lbs
Deep - 29 lbs
X Deep - 44 lbs
XX Deep - 52 lbs

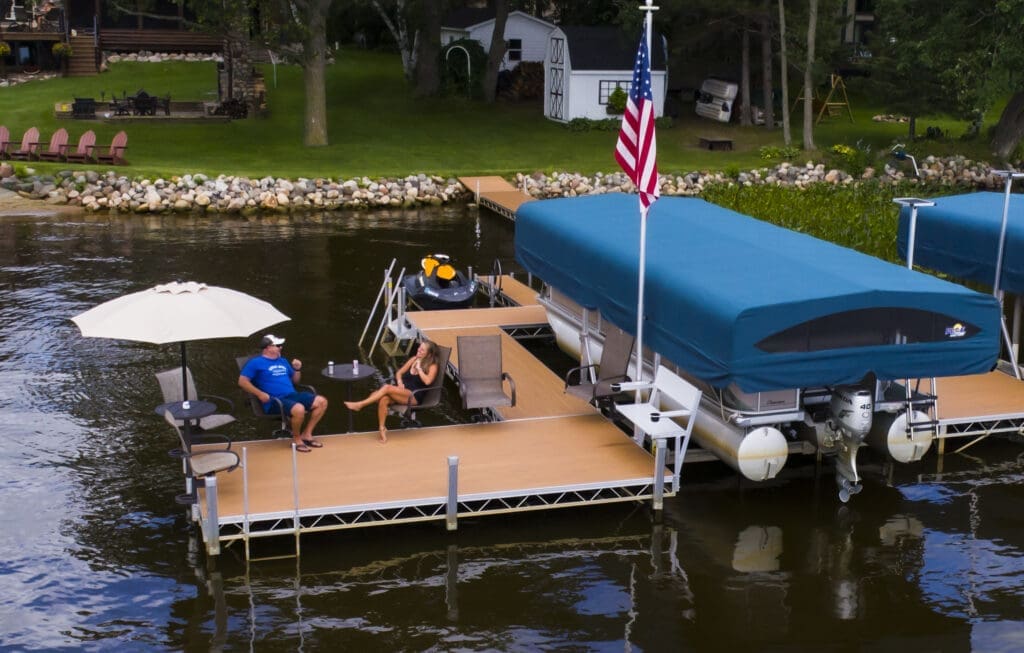

Sun Decks

FLOE roll-in sundecks offer you a spacious way to enjoy your time on the water. Many sizes are available to make the perfect dock platform for entertaining family and friends.

Shoreway Ramps

The shore way ramp has a bridge truss structure to match your roll-in dock sections and can be used with or without wheel kits. With wheels, it can be independently adjusted and moved around like other sections.  Without wheels, it stores compactly on top of a roll-in dock section.  Shore ways also work well as ramps on floating dock systems.



Shore-End Dock Ramps

The perfect approach to your dock, as well as the most cost-effective way to add length. The shore-end dock ramp attaches using our exclusive dock hook. It pivots up and down to match any shoreline height and easily detaches for seasonal storage.

Dock Wedges

Increases your deck space while making an attractive, safe corner. Wedges also make a great spot to attach a bench, ladder, or furniture. Roll-in wedges come in 2′, 4′, and 6′ widths.

Roll-In Dock Sizes & Sample Layouts

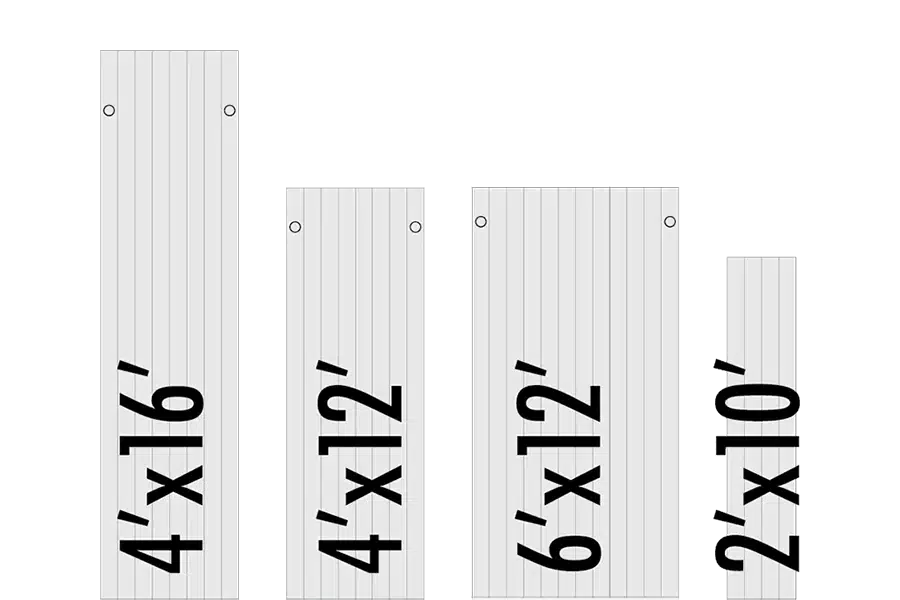

Dock Sections

  • These roll-in sections can be used for going straight out as well as making “L” shapes, slips, or sundecks.
  • Placing two 4`x12` or 4`x16` sections side by side gives you an excellent option for a double-wide sundeck that is easier to handle than a large sundeck during installation and removal.

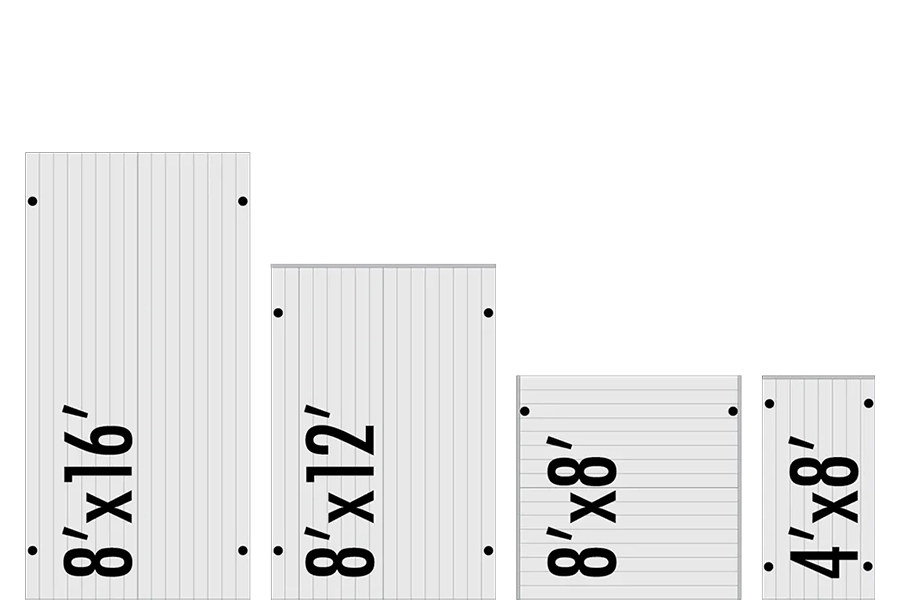

Sundecks

  • A 4`x8` sundeck can be used on the side of a straight section to create an 8`x8` sundeck.
  • An 8`x8` section used on the side of a straight section creates an 8`x12` sundeck.
  • 8`x12` and 8`x16` sections can be used either at the end of a straight section or off to the side to create a sundeck.

Wedges

Make that perfect corner while adding safety and beauty to your system.

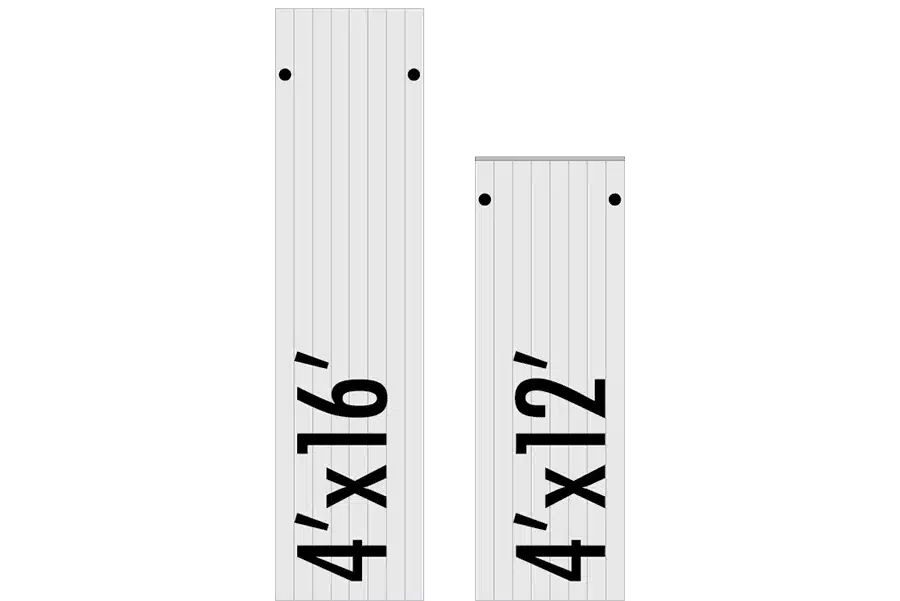

Truss Style Shoreway Ramps

  • Provides the flexibility of a shore end ramp with the look of a roll-in dock section.
  • Can be used with or without wheel kits.

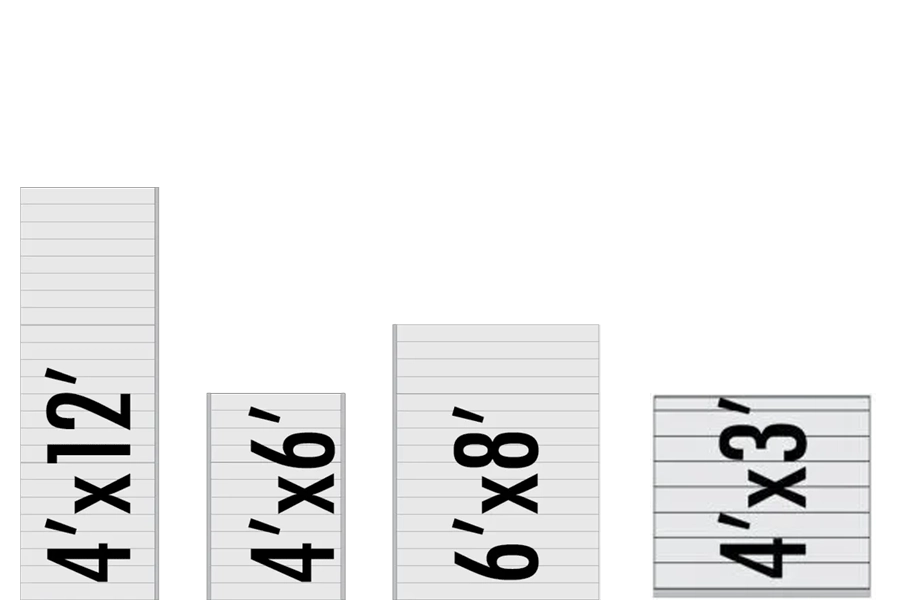

Shore End Ramps

Adjustable, pivoting shore-end ramps give you the ultimate approach and additional length for less money.

3' Shore End Transition Ramp

When less is more. Our Adjustable, pivoting 3` shore-end ramp works well when you have little room to work with or just simply don’t need that extra length.

Design-A-Dock™

See your dealer or use our interactive Design-A-Dock™  program below to create the perfect dock system.

Decking Choices

Aluminum Dock Decking

FLOE’s most popular decking! Maintenance-free aluminum decking has a long-lasting, baked-on, anti-skid surface. The light-grey hue and open ribbed underside allows air to move freely and cool the dock surface. The aluminum also assists in keeping the deck cool by conducting and transferring the water temperature to the deck.

Aluma-Grain™ Chestnut Dock Decking

Cutting-edge paint application technology gives you maintenance-free aluminum decking with the look of real wood. This patented powder coating process has all the great features of our standard aluminum decking.

Roll-In Dock Storage & Removal

Off-season storage is made simple, even on a hill.

FLOE’s innovative, modular design gives you versatility not available on any other dock. Easily disconnect dock sections for seasonal storage.

Disconnected

FLOE’s Quick-Connect™ System allows dock sections to come apart quickly for off-season storage. They can be stored side-by-side (as shown above) or they can be nested for more compact storage.

Connected

Dock sections can easily be pulled out and stored while still connected for quick and easy installation next spring.

Large system? No problem.

Large systems can be easily broken down into the modular parts and stored in a small area out of sight.
