Floating Docks

The world first truly modular floating dock.

Heavy-duty extruded aluminum frame and foam-filled molded floats

Floe’s Floating dock track system’s rigid, heavy-duty extruded aluminum frame is the backbone of the floating dock system. It provides a solid, stable base for the walking surface and is supported by foam-filled, rotationally molded floats. The heavy-duty outer frame also incorporates a patented track system which allows you to create floating modular dock configurations and add hinges, guide poles, and other accessories anywhere along the dockside . An underside track system enables floats and anchoring systems to be attached.

Rugged, long-lasting, foam-filled floats are made of virgin polystyrene resin containing UV inhibitors that are impervious to gas, oil, and other chemicals. FLOE floats are filled with polystyrene foam for added strength and reduced water absorption. They are backed by a full 15 Year Limited Warranty.

Floating Docks Features

Quick-release hinge system

FLOE’S floating boat dock sections include a quick release hinge that easily attaches dock sections together creating endless dock layouts. Simply float the dock sections into place and insert the pins in the hinge.

Anchoring solutions

FLOE offers an aluminum guide-pole and bracket system to secure and stabilize dock sections in depths up to 10 feet. The guide pole goes through a bracket on the dock with the auger end screwing into the lake bottom. As the water fluctuates, the dock raises and lowers along the guide poles, always ensuring you are high and dry.


Pilings and custom piling loops or a cable and anchor system can be used for floating dock sections in water depths greater than 10 feet.

Floating Docks Components

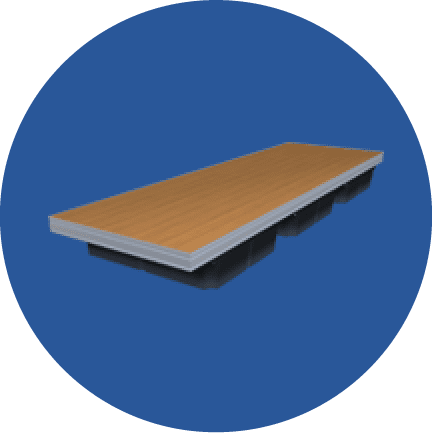

Floating dock sections

FLOE’s standard floating boat dock sections come in 3′, 4′, 5′, 6′ and 8′ widths and 16′, 20′ and 24′ lengths. Other standard components include: 8′ x 8′ sundecks, 4′ wedges and 12′ shore-end ramps. Custom length gangways can also be added as well as safety hand rails.

Approach ramps and gangways for floating docks

FLOE’s gangway is designed to roll back and forth on the dock surface as the main dock floats up and down. It continuously provides a safe transition between the shore and dock. Gangways can be attached to a cement or wood structure using FLOE’s hinge system. Contact your dealer for gangway options.


Pivoting shore-end dock ramps give you the ultimate approach to your dock and additional length for less money. They sit on your shoreline and hinge to your first floating dock section.

Dock Sizes & Sample Layouts

Dock Weights


3'x16' - 375 lbs
3'x20' - 470 lbs
3'x24' - 525 lbs
4'x16' - 460 lbs
4'x20' - 585 lbs
4'x24' - 650 lbs
5'x16' - 540 lbs
5'x20' - 680 lbs
5'x24' - 755 lbs
6'x16' - 620 lbs
6'x16' - 790 lbs
6'x24' - 870 lbs
8'x8' - 475 lbs
8'x16' - 790 lbs
8'x20' - 1,000 lbs
8'x24' - 1,100 lbs

Design any modular dock system you desire. Add dock sections and components as your needs grow or your budget allows. Contact your local FLOE dealer for details on the ideal floating dock layouts or create your own system using FLOE’s Design A Dock program.

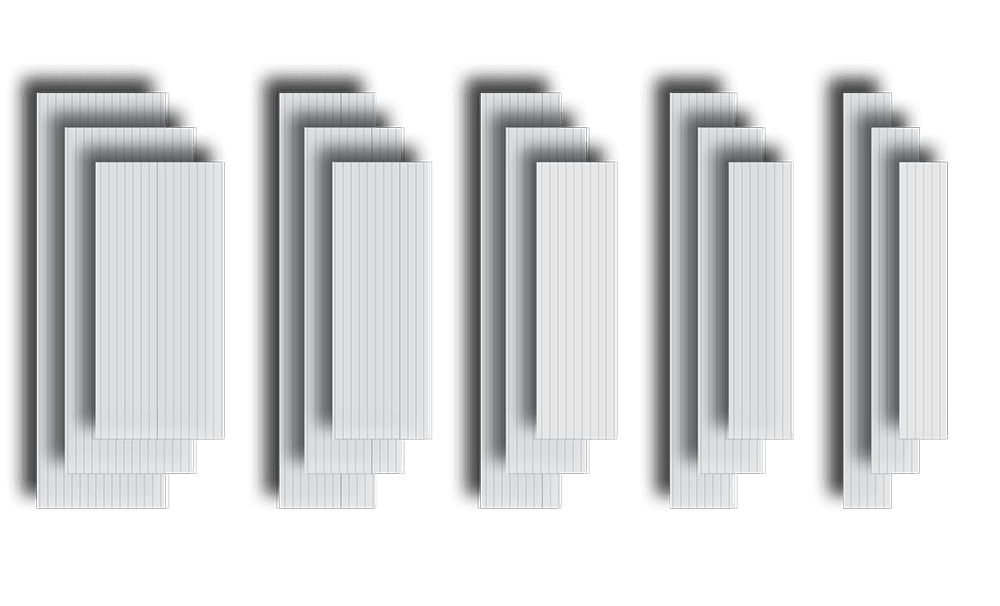

FLOE floating dock sections are available in the following lengths: 16′, 20′ & 24′. Each of these lengths is available in the following widths: 3′, 4′, 5′, 6′ & 8′.

12′ shore-end ramps are available in 3′, 4′, 5′ & 6′ widths. 9′ ramps are 8′ wide. Contact dealer for gangway options. Other standard floating dock components include 48” wedges and 8’x8′ decks.

FLOE’s modular engineering allows you to simply configure sections and add components where and when you want them, without any welding or drilling. You can get a custom system without the custom cost! Shown here are just a fraction of the commercial and/or residential systems you can create with FLOE’s modular components.


Floating docks do not use a rigid connection to the lake bottom with legs or posts so they will naturally have some give and/or sway as they are walked on. With a straight-out floating dock, stability is improved by maximizing the dock width. It is recommended that 6′ or 8′ docks widths are used for straight dock systems. Sundecks or slips will improve the stability of a floating dock system if they are connected with the hinge connector perpendicular to the narrow side of the main walkway.



These floating docks are great for:

  • Lake Homes
  • Marinas
  • Resorts
  • Campgrounds
  • Restaurants
  • Condominiums
  • Town Houses
  • Public or shared access lake lots
12" Float Only
Standard Capacity
Capacity w/ 16" floats
Capacity w/ 20" floats
Dock weight no floats
Dock weight standard floats
3' x 16'
(3) 36x48
1860 lbs.
2550 lbs.
3255 lbs.
240 lbs.
375 lbs.
3' x 20'
(4) 36x48
2510 lbs.
3430 lbs.
4370 lbs.
290 lbs.
470 lbs.
3' x 24'
(4) 36x48
1755 lbs.
2495 lbs.
3150 lbs.
345 lbs.
525 lbs.
4' x 16'
(3) 48x48
2485 lbs.
3370 lbs.
4225 lbs.
275 lbs.
460 lbs.
4' x 20'
(2) 4x4 & (1) 4x6
3340 lbs.
4520 lbs.
5660 lbs.
340 lbs.
585 lbs.
4' x 24'
(4) 48x48
3280 lbs.
4460 lbs.
5600 lbs.
400 lbs.
650 lbs.
5' x 16'
(3) 48x60
3170 lbs.
4340 lbs.
5510 lbs.
325 lbs.
540 lbs.
5' x 20'
(4) 48x60
4260 lbs.
5820 lbs.
7380 lbs.
400 lbs.
680 lbs.
5' x 24'
(3) 48x60
4190 lbs.
5550 lbs.
7310 lbs.
470 lbs.
755 lbs.
6' x 16'
(3) 48x72
3805 lbs.
5140 lbs.
6445 lbs.
365 lbs.
620 lbs.
6' x 20'
(4) 48x72
5115 lbs.
6895 lbs.
8635 lbs.
445 lbs.
790 lbs.
6' x 24'
(4) 48x72
5030 lbs.
6810 lbs.
8550 lbs.
530 lbs.
870 lbs.
8' x 8'
(2) 48x96
3455 lbs.
4655 lbs.
5825 lbs.
255 lbs.
475 lbs.
8' x 16'
(3) 48x96
5120 lbs.
6920 lbs.
8675 lbs.
445 lbs.
790 lbs.
8' x 20'
(4) 48x96
6920 lbs.
9400 lbs.
11800 lbs.
540 lbs.
1000 lbs.
8' x 24'
(4) 48x96
6740 lbs.
9180 lbs.
11520 lbs.
640 lbs.
1000 lbs.


See your dealer or use our interactive Design-A-Dock™  program below to create the perfect dock system.

Decking Choices

Aluminum Dock Decking

FLOE’s most popular decking! Maintenance-free aluminum decking has a long-lasting, baked-on, anti-skid surface. The light-grey hue and open ribbed underside allows air to move freely and cool the dock surface. The aluminum also assists in keeping the deck cool by conducting and transferring the water temperature to the deck.

Aluma-Grain™ Chestnut Dock Decking

Cutting-edge paint application technology gives you maintenance-free aluminum decking with the look of real wood. This patented powder coating process has all the great features of our standard aluminum decking.

Where Can you find FLOE?

FLOE products are sold through a professional dealer network across the US and Canada. Use our dealer locator to find Floe products near you.
